ISUZU QL1070BUKWY foam tender fire service truck drawing, also called as Isuzu foam fire vehicle drawing or Isuzu rescue fire truck drawing, is composed of components such as the Isuzu QL1070BUKWY chassis, water and foam tanks, fire pump, piping system, and instrument & electrical system. The Isuzu chassis Foam Tank Fire Truck is equipped with a detachable aluminum alloy rear ladder, and the pump room is located at the rear of the truck. The tanks adopt a steel plate welded structure, with a water capacity of 1.36 cubic meters and a foam liquid capacity of 0.5 cubic meters. ▶Truck Model : ISUZU Foam tender fire service truck ▶Speficiation : 1500 L water + 500 L foam ▶Application Area : Fire resuce department / Municipal fire bureau Truck Item Speficiation Project Location ISUZU 4x2 Foam Fire Truck 1500 liters, 500 Liters Fire rescue department ISUZU QL1070BUKWY foam tender fire service truck drawing Item Specification Vehicle Model CS5070GXFPM20/Q6A Overall Dimensions 6800×1990×2990 mm Gross Vehicle Mass 6800 kg Liquid Capacity 1500 L (Water); 500 L (Foam) Max. Speed 95 km/h Rated Flow of Fire Pump 30 L/s @ 1.0 MPa Rated Flow of Fire Monitor 24 L/s @ 0.8 MPa Fire Monitor Range ≥55 m (Water); ≥42 m (Foam) Approach Angle / Departure Angle 24° / 14° New ISUZU 2000L water foam fire fighting trucks technical drawing share 2026 ISUZU Foam fire vehicle CAD drawing share 2026 ISUZU cab chassis fire truck drawing share Original technical drawing for Isuzu foam fire engine Isuzu chassis Foam Tank Fire Truck technical drawing The water tank of Isuzu foam fire truck is made of high-quality carbon steel plate with anti-corrosion treatment on the inner wall, while the foam tank is made of 304 stainless steel. The fire truck is fitted with a Model CB10/30 fire pump and a Model PL8/24 dual-purpose fire monitor. Item Specification Chassis Model Isuzu 600P QL1070BUKWY, China National Stage VI Emission Drive Type 4×2 Wheelbase 3815 mm Max. Speed 115 km/h Engine Model 4KH1CN6LB Rated Power 88 KW Gross Mass 7020 kg ISUZU Fire engine front view Foam tender Front right view Foam fire vehicle rear view Item Specification Capacity 1360 L (Water); 500 L (Foam) Material Water tank: high-quality carbon steel plate with internal anti-corrosion treatment. - Bottom plate: 4 mm carbon steel plate - Side plates & end plates: 3 mm carbon steel plate - Top plate: 3 mm carbon steel checkered plate Foam tank: high-quality stainless steel plate. - Bottom plate: 4 mm stainless steel plate - Side plates & end plates: 3 mm stainless steel plate - Top plate: 3 mm stainless steel checkered plate Structure Steel plate welded structure with internal anti-slosh baffles Equipments • 1 manhole cover with quick locking and opening device...
The CS5030TXFQC15 Dongfeng Nissan RIV fire pickup Vehicle is modified on the basis of the Dongfeng Nissan ZN1033UCM6A 4WD pickup truck. The complete vehicle mainly consists of a double-cab pickup chassis with high maneuverability, warning lights, interior pull-out equipment trays and other components. Dongfeng Nissan RIV fire pickup drawing share ▶Truck Model : Dongfeng Nissan Rescue Fire pickup ▶Speficiation : Quickly rescue ▶Application Area : Fire resuce department / Municipal fire bureau Truck Item Speficiation Project Location DONGFENG NISAN 4x4 Fire pickup Lighting and fire equipments Fire rescue department Core Purpose: 01: Used for the transportation of emergency rescue equipment and materials in sudden natural disasters, safety accidents, fires and other emergencies. 02: Military, public security special service, fire rescue support. Item Specification Overall Dimensions (mm) 5537 × 1850 × 1950 Curb Weight (kg) 2205 Gross Vehicle Weight (kg) 2580 Engine Power (kW) 122 Number of Occupants 2+3 Maximum Speed (km/h) 155 Approach Angle / Departure Angle (°) 33 / 25 Specific Power (kW/T) 47.29 Emission Standard GB18352.6-2016 China Ⅵ Emergency Repair 03: Inspection and emergency repair of pipelines for petroleum, chemical industry, natural gas, water supply and power supply. 04: Transportation of equipment and materials for emergency repair and maintenance of equipment faults such as high-voltage power transmission and transformation lines, expressways and mines. Nissan fire pickup front view Side view fire pickup Rear view fire pickup Documents on board Item 01 Vehicle Technical Documents 02 Chassis Operation Manual 03 Chassis Number Rubbing 04 Chassis Maintenance Manual 05 Fire Truck Operation Manual 06 Chassis Quality Warranty Card 07 Fire Truck Certificate of Conformity 08 Chassis Certificate of Conformity 09 Fire Truck After-Sales Tracking Service Card 10 A Set of Chassis Tools 11 Fire Truck Handover List 12 Engine Number Rubbing Dongfeng Nissan Rescue Fire Pickup Factory Pictuers Main features of Dongfeng Nissan fire pickup:(1) High maneuverability and strong passability;(2) Equipped with pull-out equipment trays inside the vehicle for convenient and quick access.
FOTON 4x4 1500L Fire Pickup Rapid intervention vehicle, also named FOTON rescue pickup or Foton rapid fire engine, are widely used in various emergency rescue scenarios due to their high mobility, strong off-road capability, and flexible modification, and are especially suitable for complex terrains and narrow areas that are difficult for traditional large fire trucks to reach. The foton fire pickup is equipped with an aluminum alloy rear ladder (removable), with the pump room located at the rear of the vehicle.The tank is steel plate welded and made of high-quality aluminum alloy plate, with a water capacity of 1.5 cubic meters.The vehicle is equipped with a CB10/30 fire pump and a PS8/30W fire water monitor. FOTON 1500L Fire Pickup Rapid intervention vehicle technical drawing ▶Truck Model : FOTON 4x4 RIV rescue pickup ▶Speficiation : 1500 L water ▶Application Area : Fire resuce department / Municipal fire bureau Truck Item Speficiation Project Location FOTON 4x4 RIV pickup 1500 liters, 190 Hp engine Fire rescue department FOTON Rescue fire pickup CAD drawing FOTON Rescue fire pickup CAD drawing Foton RIV side view Foton fire pickup side view Foton fire engine rear view Item Specification Vehicle Model CS5040GXFSG15/B6B Overall Dimensions 5080 × 1940 × 2640 mm Maximum Total Mass 4130 kg Liquid Capacity 150 L (Water) Maximum Speed 135 km/h Rated Flow of Fire Pump 30 L/s @ 1.0 MPa Rated Flow of Fire Monitor 30 L/s @ 0.8 MPa Range of Fire Monitor ≥ 60 m (Water) Approach Angle / Departure Angle 28° / 23° FOTON RIV equipped fire pickup factory picture FOTON RIV equipped fire pickup factory picture FOTON RIV equipped fire pickup factory picture FOTON Fire pickup on board equipment: Category No. Name Specification Qty Unit Remarks Fire Extinguishing Equipment 1 Suction Hose DN100 8 m Threaded type 2 Strainer FLF100 1 pc Threaded type 3 Water Divider FII80/65×2-1.6 1 pc Instantaneous coupling 4 Water Manifold JII100/65×2-1.6 1 pc Internal thread to instantaneous coupling 5 Fire Hose 13-65-20 6 roll Normal pressure; instantaneous coupling 6 Fire Hose 13-80-20 2 roll Normal pressure; instantaneous coupling 7 Fire Hose 13-65-5 1 roll Instantaneous coupling (for external water filling) 8 Reducing Adapter KJ65/80 1 pc Instantaneous coupling 9 Hose Cloth - 4 pcs - 10 Hose Bridge - 2 pair - 11 Hose Hook - 4 pcs - 12 Above-ground Fire Hydrant Wrench - 1 pc - 13 Underground Fire Hydrant Wrench - 1 pc - 14 Suction Hose Wrench 100 2 pcs - 15 Straight Stream Shut-off Nozzle QZG3.5/7.5; 65 1 pc Instantaneous coupling 16 Straight Stream & Spray Nozzle QLD6.0/6.5I; 65 1 pc Instantaneous coupling Forcible Entry & Rescue Tools 1 Fire Extinguisher 3kg / ABC 1 unit - ...

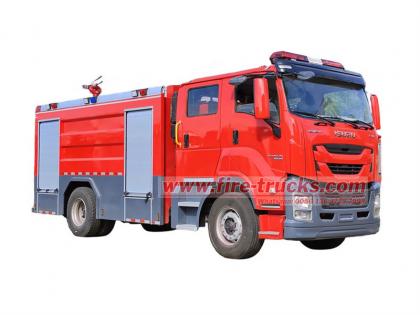

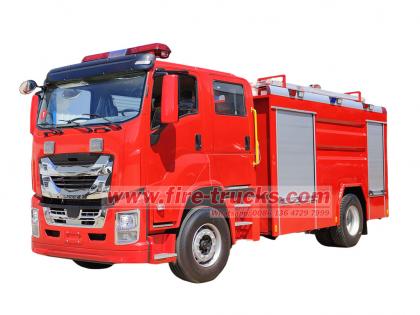

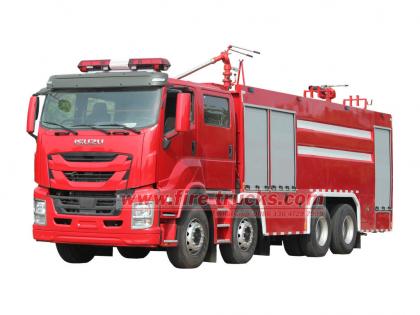

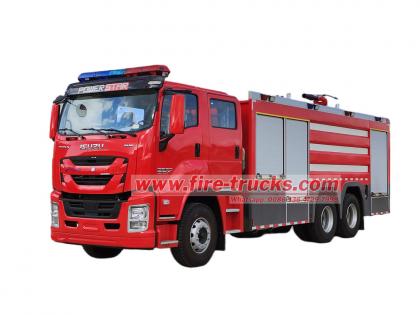

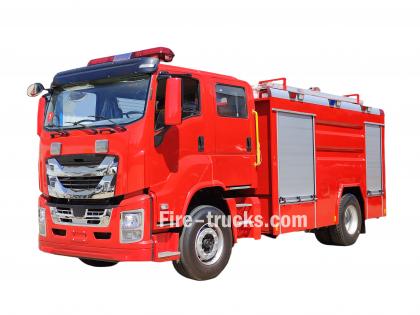

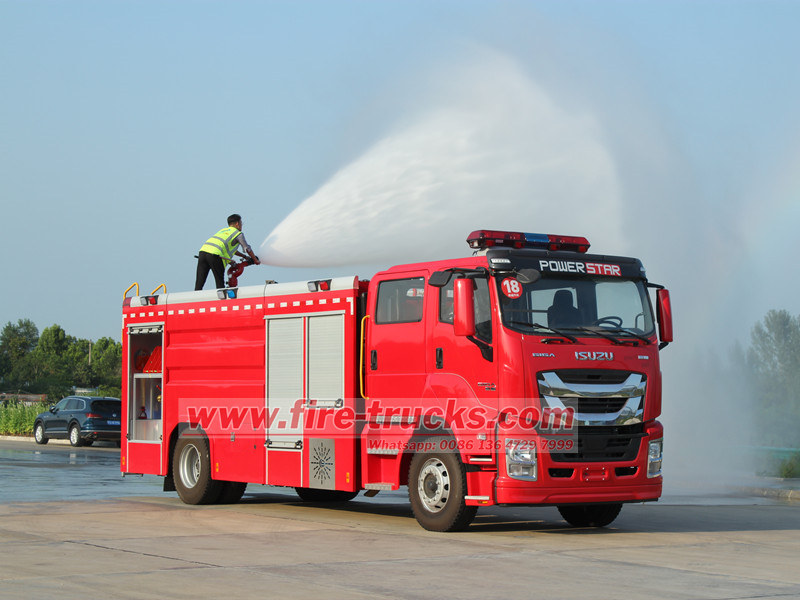

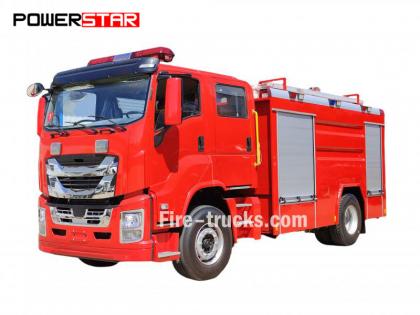

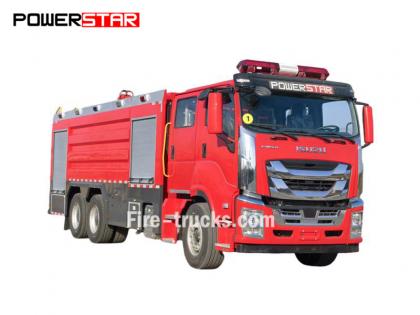

CS trucks as the most professional Water foam powder firefighting vehicle manufacturer in China, all our Dry powder and foam combined fire trucks are particularly suitable for extinguishing fires involving flammable gases, flammable liquids, organic solvents, electrical equipment, and general materials. They are widely used in high-risk locations such as petrochemical enterprises, oil depots, airports, ports, and urban special service fire stations. This Isuzu Water foam powder firefighting vehicle technical drawing is primarily designed for light and small fire fighting trucks. For example, city narrow road, small oil gas station,chemial area, highway department. Upon on different kinds of commands, customer can require wide range of wheelbase ( 3900 mm, 4500mm, 5000mm) and engine horse power ( 240 Hp, 300 Hp) ▶Truck Model : Isuzu FVR/GIGA ▶Speficiation : 3000 L water + 1000 L foam + 1000L dry powder ▶Application Area : Fire resuce department / Municipal fire bureau Truck Item Speficiation Project Location Isuzu 4x2 foam powder fire truck 5000 liters, 240 Hp engine Fire rescue department 2026 NEW Water foam powder firefighting vehicle drawing share 2026 NEW Water foam powder firefighting vehicle drawing share 2026 dry powder firefighting vehicle dry powder testing 2026 NEW Water foam powder firefighting vehicle water jetting testing Design Section Specific design content 1. Design Overview 1. Applicable scenarios: High-risk locations such as petrochemical enterprises, large oil depots, and airports. 2. Functional Features: Integrates dry powder and foam fire extinguishing technologies, suitable for extinguishing fires involving flammable liquids, combustible gases, electrical equipment, and general fires; prevents reignition and provides rapid fire control. 3. Design Standards: Complies with national standards such as GB 7956.4-2019 and GB 7956.2-2014. 2. Vehicle Chassis Design 1. Powertrain Configuration: 6×4 internationally renowned brand chassis, V6 turbocharged diesel engine, power ≥350KW, China VI emission standard, power-to-weight ratio ≥10Kw/t, speed ≥100km/h 2. Basic configuration: ABS+ASR intelligent braking, full- power PTO , front and rear tow hooks, and metal parts resistant to seawater corrosion. 3. Cabin: Flat-front, four-door, double-row seating, accommodating 6 people; equipped with a panoramic recorder, reversing camera, and in-car radio; adjustable seats with air respirator brackets for safety and convenience. 3.1. Upper Structure System Design – Tank System 1. Volumetric structure: Internal compartmentalized design, total volume ≥12m³ (water tank ≥6m³, foam tank ≥3m³, dry powder tank ≥3m³) 2. Material and manufacturing process: 304 stainless steel, bottom plate ≥5mm, side plate ≥4mm; internal anti-sloshing baffle, m...

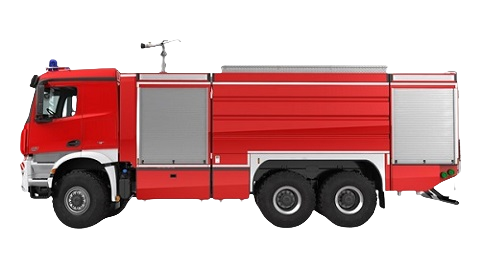

Beiben Fire Truck based on type II Beiben 2638 model 6*4 Left Hand Drive chassis, body capacity could up to 12,000Liters, including 10,000Liters water tanker and 2,000Liters foam tank, Beiben 2638 fire rescue truck equipped with XIONGZHEN CB10/60 fire pump and PL8/48 fire monitor, very convenient for daily use. Mainly used for firefighting project in any areas of need. The vehicle designed to fully rely on the advantages of the original of Beiben brand truck chassis, fully consider the product's convenience and reliability, also the newly designed chassis. The body material is international standard carbon steel with anti-corrosion painting and stainless steel, which can effective to avoid rusting and service for long life. The Beiben 6x4 Fire Truck equipped with Sandwich PTO, fire pump, fire monitor, crew room, hose box, pump room, dry powder tanker and nitrogen system, matched with pipeline hose reel, English version control box, inlet and outlet pipeline, rear climbing ladder, top pillow lamp, and all necessary firefighting equipment. Customized Double-row cabin with 2+4 seats nice driving feeling. Therefore, the vehicle is an ideal Fire Truck mainly for firefighting project.
Isuzu 700P foam fire fighting is emergency quick action fire rescue trucks. It has great advantage on japan isuzu 4x2 and 4x4 drive truck chassis, in terms of dacades of experience on this classic rigid truck chassis, Isuzu 700P water foam truck has become the first choice of many fire departments. This Isuzu ELF fire rescue truck technical drawing is primarily designed for light and small fire fighting trucks. For example, city narrow road, small oil gas station,chemial area, highway department. Upon on different kinds of commands, customer can require wide range of wheelbase ( 3360 mm 3815 mm, 4715 mm) and engine horse power ( 190 Hp, 205 Hp) ▶Truck Model : Isuzu 700P/ELF ▶Speficiation : 2000 L water + 500 L foam ▶Application Area : Fire resuce department / Municipal fire bureau Truck Item Speficiation Project Location Isuzu 4x2 foam fire truck 2500 liters, 190 Hp engine Fire rescue department 3 options for Isuzu ELF 700P fire rescue trucks
这 HOWO应急救援消防车 这款配备起重机的多功能消防车集拆除、拖曳、起重和照明功能于一体,专为应对复杂的灾害现场而设计。其核心配置包括一台5吨折叠臂起重机、一台3吨液压绞车、一盏500瓦探照灯和一套发电机组,使其能够执行起重、拖曳和照明任务。 它适用于自然灾害和交通事故现场,可执行拆除、救援和发电任务。其模块化设计允许快速调整设备布局,以适应不同的救援需求。 ⇒ 图纸 PDF 下载 : HOWO救援消防车车载起重机技术图纸 HOWO救援消防车车载起重机技术图纸(左前视图) HOWO应急救援起重机消防车 主要规格 舱 双人舱,最多可容纳6人 起重机 模型 SQ5ZK2 起重能力 5000公斤 手臂数量 3 绞盘 数量 1 容量 3000公斤 探照灯 旋转角度 360 ° 工作高度 5米,自动升降 布雷 500瓦*4个 最大风速 6 年级以下 将军权力 5千瓦 消防车车身 货车车厢为空,设备可选。 颜色 整辆车都是红色的,用于消防,车身中部有白色,与整辆车的颜色相符。 HOWO应急救援起重机消防车技术图纸 设计图 HOWO 带起重机的应急救援消防车 HOWO重型救援消防车右侧视图 HOWO消防车右侧视图 HOWO应急救援消防车前视图 HOWO消防车技术图纸右侧视图 HOWO应急救援起重机消防车右前视图 HOWO应急救援起重机消防车后视图(左后方) 如何保养和维修 HOWO救援消防车 : 1. 动力和液压系统 发动机:检查冷却液和机油液位以及怠速稳定性。 液压系统:检查油管泄漏情况,定期更换液压油,并清洗油箱。 动力输出装置(PTO):确保平稳接合和液压泵正常运转。 2. 专业救援设备 酷刑系统:检查绞车钢丝绳磨损情况并润滑牵引连接部件。 破坏工具:测试液压切割器和扩张器的功能;确保密封件未老化。 起重设备:校准车载起重机的支腿,并检查吊臂液压锁定装置。 照明系统:润滑起重灯组件的导轨,并测试便携式高强度手电筒。 Howo品牌消防救援车带起重机测试 3. 辅助支持系统 通信和指挥:卫星设备需要定期校准;确保多屏显示终端无故障。 医疗紧急情况:检查除颤器电池电量,并更新急救箱药品的有效期。 消防设备:测试灭火器压力;确保消防水带完好无损。 智能系统:需要测试液压辅助牵引的传感器灵敏度。

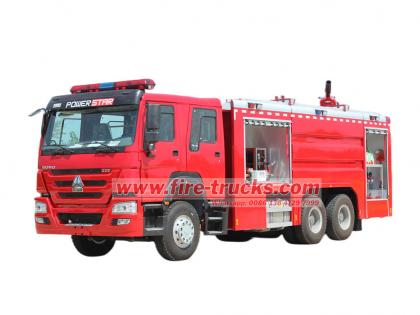

非洲毛里塔尼亚客户共购买了4套单元 中国重汽HOWO泵送式消防车 这辆消防车来自 POWERSTAR TRUCKS,目前在首都努瓦克肖特使用。消防车也称为消防泵车或消防车,是一种专为满足国际上多种灭火和人员救援项目需求而设计制造的车辆。它配备了定制的双排驾驶室,用于搭载消防员,并配备各种消防设备和工具,用于灭火、消防救援等。为了确保 HOWO 消防车更高效地工作,我们对其进行了定制,使其配备铝合金云梯、水泡沫和干粉灭火剂储罐、高效的 CB10/60 型消防泵(与 PL8/48 型消防炮匹配),喷射距离超过 70 米,配备用于远距离灭火的消防水带卷盘和水枪,以及带面罩的呼吸器、防护服、救援工具、急救箱等。我们为 HOWO 消防车提供全方位服务,确保其高效可靠地工作。为了保证毛里塔尼亚客户能够更轻松、更高效地使用 HOWO 消防车,所有卡车均配备全套英文版服务目录,包括操作指导用户手册、卡车手册和备件手册,用于使用和维护。 中国重汽豪沃14000升粉末泵送消防车 POWERSTAR工厂 是一家专业的卡车领域制造商, 保证所有产品均为全新正品,品质优良。 » Ⅰ. HOWO消防车的优势: ★ 247KW / 336HP 强劲的潍柴柴油发动机,行驶 100,000 公里无故障。 ★ 中国重汽豪沃经典HW76驾驶室,欧式设计 ★ 配备 CB10/60 消防泵,流量 60 升/秒,超级可靠 ★ 顶部安装PL8/48水炮,经久耐用 ★ 500升干粉,带氮气瓶和空气控制阀 ★ 泡沫和粉末集成控制系统,控制面板位于后部 » Ⅱ 。 Howo救援消防车图纸: [if gte mso 9]> Normal 0 7.8 磅 0 2 false false false EN-US ZH-CN AR-SA HOWO 10 wheeler tanker fire engine fully rely on Sinotruk chassis, original HW76 cabinet equipped A/C with heating and cooling function for comfortable driving. And truck mounted with full stainless steel SS304 material tanker body, with efficiently volume 12000Liters, including 10000L water tanker, 1000L foam taner and 500L dry powder tanker, equipped with one Chinese brand CB10/60 fire pump and PL8/48 fire monitor on the top of tanker body, full sets fire fighting rescue equipment, all well installed and make truck an ideal vehicle for fire extinguishing project in Honduras street and community. Which have advanced features for design and reliable quality for performance, and been export to Africa Mauritania market. And below are advanced features for overview ----- Tanker material : Carbon steel, stainless steel, aluminum alloy, PP material ----- Fire Pump : Based on tanker body and jetting distance, optional American Darley brand ----- Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type) Fire truck install PTO and fire pump HOWO fire truck mounted with Sandwich PTO Water and foam tanker assembly HUAYU CB10/60-TB fire pump Model : CB10/60 Low Working Pressure : 1.0Mpa Low Pressure Flow Rate : 60L/s Self Suction Dept : 3m Maximum Working Pressure : 1.605Mpa PS8/48 Foam Fire Monitor Model : PL8/48 Pressure : 0.8Mpa Working Range : Water ≥ 70 m, Foam ≥ 60 m Vertical Rotation : -45° ~ +70° Horizontal Rotation : 0° ~ 360° Flow Rate : 48 L/s » Ⅴ . HOWO fire tanker truck Dry Powder Assembly: Sinotruk HOWO 6x4 fire engine equipped with 500L dry powder assembly, including 500liters dry powder tanker and 2 sets nitrogen bottles, matched working with air way control valves, all can be used in an integrated control plate. Which have advanced features for design and reliable quality for performance. HOWO fire truck with 500kg powder tanker HOWO fire engine nitrogen bottles storage box and controller Matched with 35m hose reel » Ⅵ . HOWO fire rescue vehicle well finished: HOWO 6x4消防车安装好所有消防设备后,即可进行喷漆,包括底部防锈红漆、中部涂漆和外部红色涂漆。油漆干燥后,即可进行工厂测试,并准备发货。此外,我们所有的消防车都经过防水测试,因此可以保证驾驶室内不漏水,确保行车安全。 HOWO油罐消防车防水测试 HOWO消防车防水测试 HOWO泵式消防车防水测试 » Ⅶ 。 Howo 336马力泵浦消防车出厂前测试: HOWO 336HP 水泡沫罐车消防车经过多次工厂测试后,...
680+已完成项目
+86 188 0866 8888
作为一名专业的雄臻 消防泵制造商 在中国, 动力之星卡车 公司拥有自主品牌“雄震”系列产品,包括低压消防泵、中低压消防泵、高低压车载消防泵以及消防炮、泡沫比例混合器等配套设备。其消防泵采用铝合金、不锈钢等新型材料,配备电磁离合器自动脱离装置和止回阀,性能优异,操作简便,维护方便。公司产品已通过国家消防器材质量监督检验中心型式试验、CCC认证和ISO9001质量管理体系认证。 雄镇消防泵主要包括以下型号:CB10/20-XZ, CB10/30-XZ CB10/40-XZ CB10/60-XZ ,CB10/80-XZ,CB10/100-XZ,CB20.10/15.30-XZ,CB20.10/20.40-XZ,CB20.10/30.60-XZ 等。 消防车用 CB10/20-XZ 型消防泵 消防车用 CB10/30-XZ 型消防泵 中国消防车用CB10/40-XZ型消防泵 消防救援车用CB10-...
阅读更多PF5-15 固定干粉监测器 该产品以干粉为介质,依靠固定底座实现稳定喷洒。适用于化工和仓储区域,能在火灾初期迅速覆盖燃烧表面,提高灭火效率。 这 PF5-15 固定式干粉监测仪 结构坚固,操作简便,可与自动控制系统连接,实现远程启动和精确喷洒。 » Ⅰ. PF5-15 固定式干粉监测仪 结构: PF5-15固定式干粉监测仪的特点: ● 功能齐全; ● 结构简洁新颖; ● 性能稳定,维护方便; ● 入口压力低; ● 配备有水平和垂直锁定功能的自动排水阀; ● 材质:精密铸造铝合金; ● 炮头:铝合金。 » 二、 泡沫炮 PL24 规格: 模型 流动 ( 公斤 /s ) 范围 ( 米 ) 额定工作压力 ( 百万 ) 投球旋转 ( ° ) 水平旋转 ( ° ) 长×宽×高 ( 毫米 ) 重量 ( 公斤 ) PF5-15/40 40 ≥42 0.80 -45 ~ +70 0 ~ 360 980x...
阅读更多CB10/140泡沫消防泵是一款常用的车载或固定式消防供水系统,额定压力为1.0 MPa,额定流量为140 L/s,满足消防系统的核心供水需求。泵体和叶轮均采用优质耐磨材料制成,具有耐腐蚀性和耐高压性。 它采用双进水口设计,可快速切换水源,并由高效电机或柴油发动机驱动,启动响应时间不超过30秒。凭借其紧凑的设计、易于维护和可靠的运行, CB10/140泡沫消防泵 是确保消防行动高效供水的重要设备。 CB10/140-XZ型低压车载消防泵采用单级离心式结构,泵壳为铝合金材质,叶轮为黄铜材质。它采用带电控开关的四活塞电动引水系统。可选配的CB10/20型泡沫泵则采用气动分离机构。该产品性能优异、结构紧凑、操作简便、维护方便。 CB10/140-XZ型消防泵是一款用于消防车的单级离心水泵,其特点是采用双活塞自动接合和脱离的引水装置。该泵结构紧凑、操作简便、维护方便,并具有高性能的特点。主要规格包...
阅读更多五十铃6HK1-TC消防车 也称作 五十铃救援消防车 发动机故障代码诊断及解决方案。 五十铃6HK1-TC发动机采用先进的TICS燃油喷射泵电子控制系统,其ECU(发动机控制单元)具备自诊断功能。当系统检测到故障时,“检查发动机”警告灯会亮起,并存储相应的故障代码。了解这些故障代码的含义和解决方法,可以有效提高发动机维护效率。 常见错误代码及解决方法 P系列故障代码 P0101(空气流量传感器电路低) 检查发动机冷却液温度传感器及其线路。确认传感器电源电压和接地连接正常。必要时更换ECU或传感器。 P0102(空气流量传感器电路高) 检查燃油质量和滤清器状况。清洗燃油系统。检查燃油压力调节器、燃油泵和喷油器电路。 P0103(质量空气流量传感器 A 电路高) 检查传感器信号电路是否存在短路。测试传感器的工作状态。如有必要,更换传感器或ECU。 数字故障代码 10(机架传感器错误) 检查机架...
