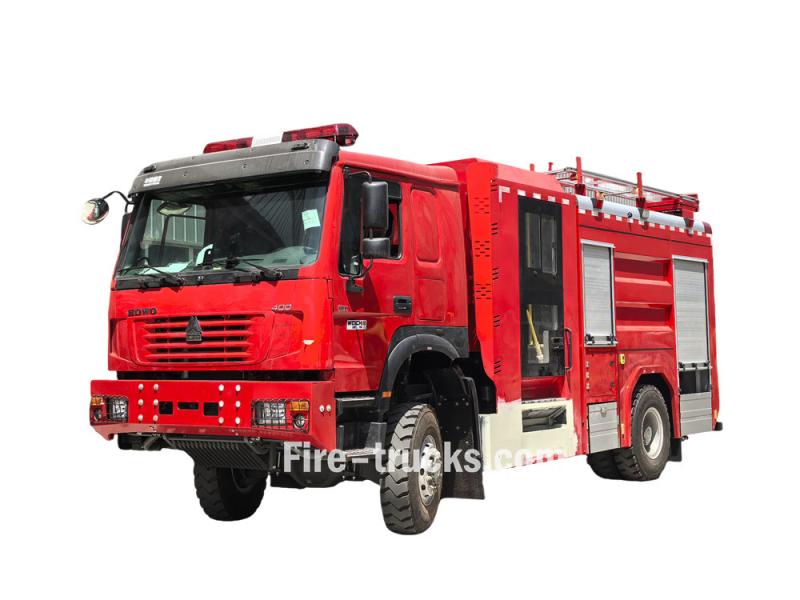

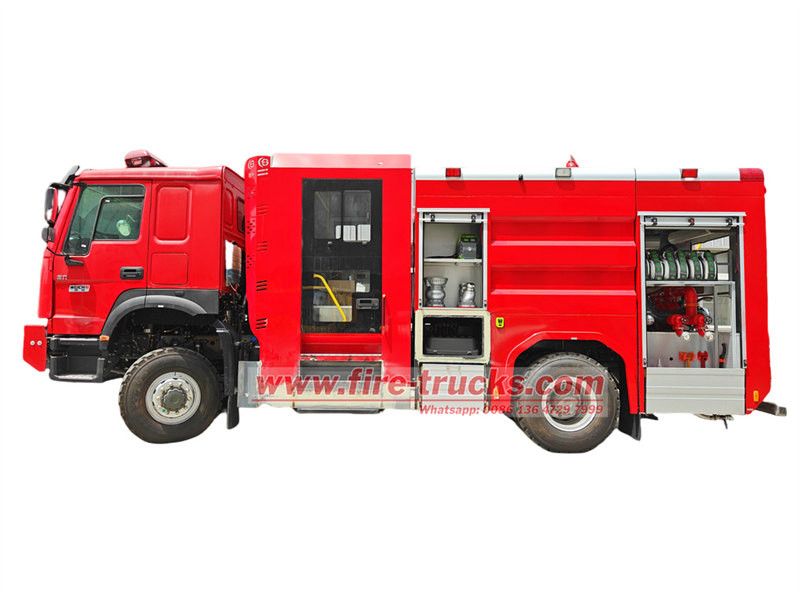

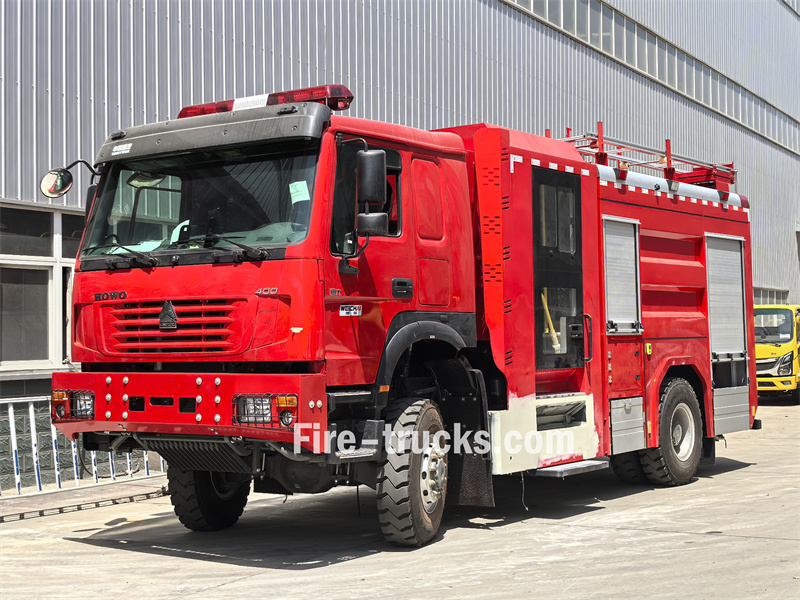

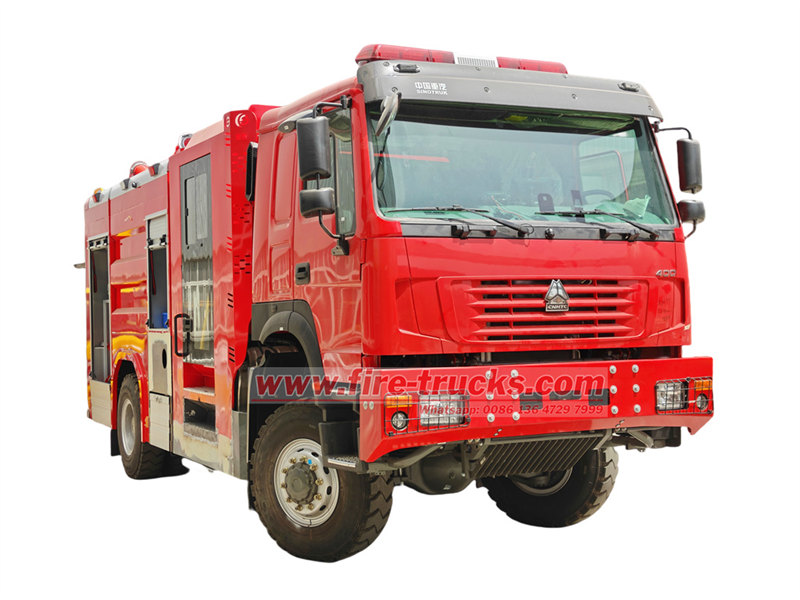

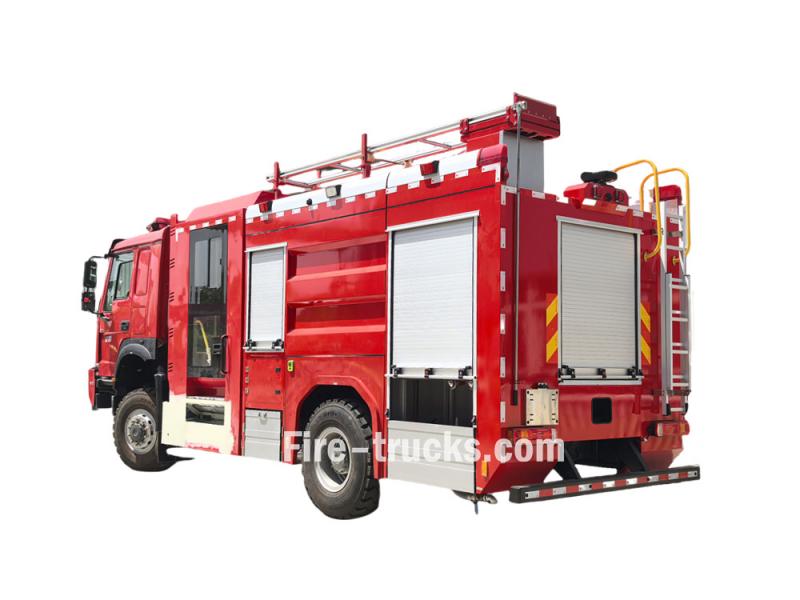

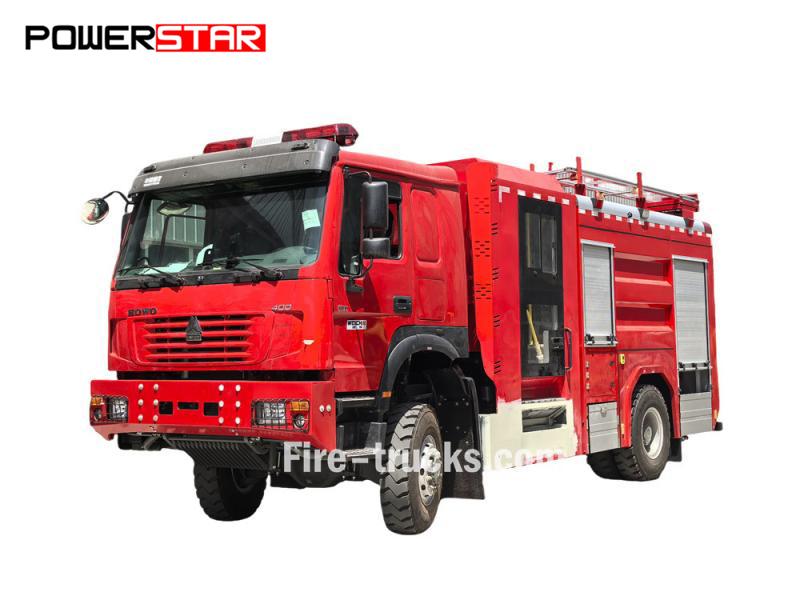

HOWO 4×4 Fire Truck is a professional firefighting vehicle built on the basis of SINOTRUK HOWO ZZ2167 4×4 off-road chassis. It is equipped with a high-quality fire pump, a 6-cubic-meter water tank, and a 2-cubic-meter foam tank, along with a fire monitor capable of jetting water up to 70 meters and a modular equipment compartment. Powered by a 380-horsepower engine, featuring a part-time four-wheel drive system and off-road tires, this vehicle demonstrates outstanding all-terrain mobility.
卡车底盘:
Howo ZZ2167 , 4x4作业能力:
6000L water +2000L foam发动机功率:
380 HP消防泵:
CB10/60, 60L/s泵流量:
60L/s工作压力:
1.0 Mpa消防炮:
China PL8/48监测流量:
48 L/S显示器范围:
Water≥70 m;foam≥60m

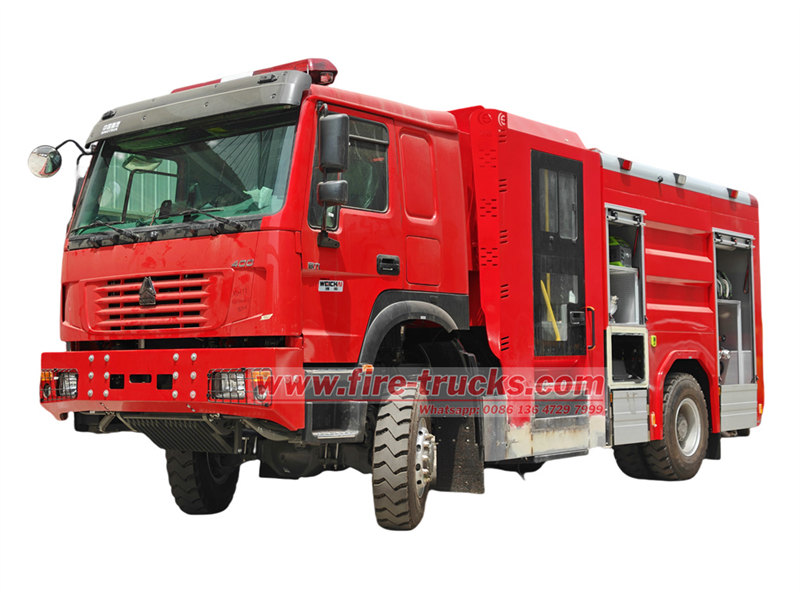

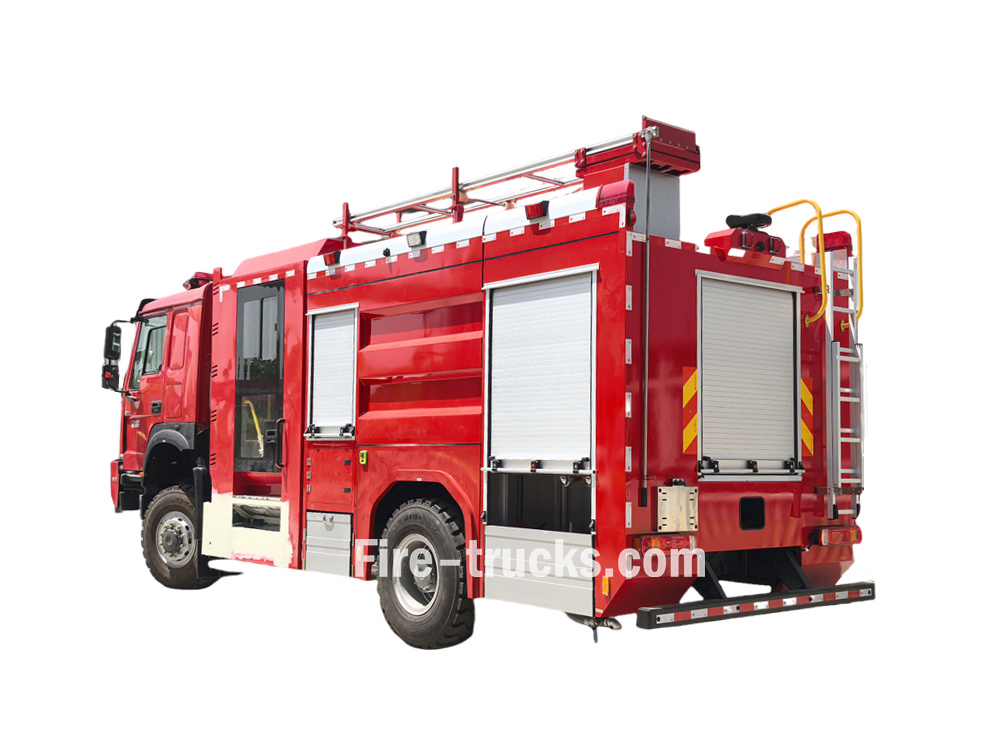

HOWO 4×4 Fire Tanker Truck is an off-road firefighting vehicle built on SINOTRUK HOWO 4×4 chassis. It consists of several core components: a high-performance chassis, an independent crew cabin, a 6-cubic-meter steel water tank, a 2-cubic-meter stainless steel foam tank, a CB10/60 fire pump, a PL8/48 fire monitor, and a modular equipment compartment.
A standout feature of this
HOWO 4×4 off-road fire engin
e
is its integration of superior firefighting capabilities and off-road performance. Its fire monitor can jet water over 70 meters and supports firefighting while on the move. It is designed not only to meet the firefighting demands of specialized industries such as forestry, petroleum, and geological exploration
» Ⅰ. Product Introduction:
Manufacturer: POWERSTAR TRUCKS
1. Truck Chassis: 4×4 drive, with excellent off-road performance
2. Tank material:
carbon steel water tank and stainless steel foam tank, 4mm thickness
3. Tanker body: Tank capacity can be desinged as required, dry powder tank is optional
4. Fire Pump:
CB10/60 centrifugal fire pump, flow rate 60L/s, working pressure 1.0Mpa

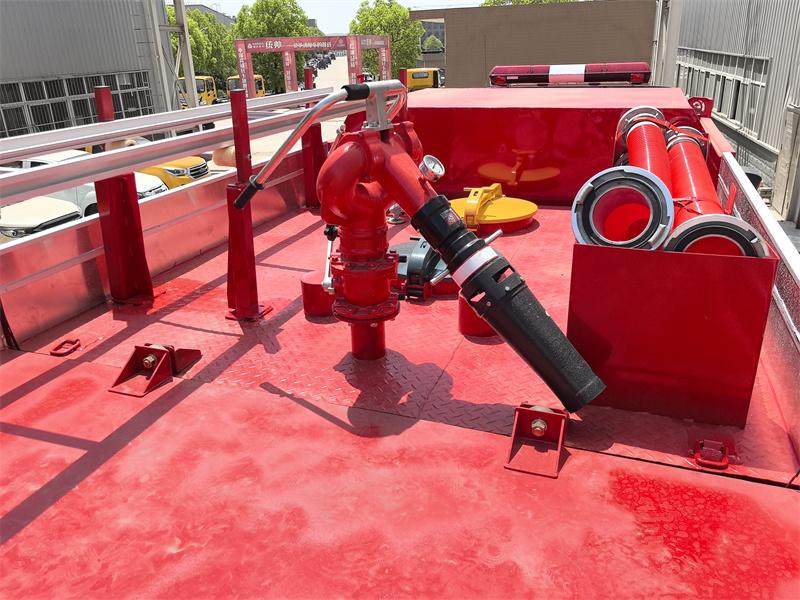

PL8/48W fire monitor, 360° rotation, water range is up to 70m
5. Special design: Super designed working temperature -41℃ to +48 ℃ day and night, with efficiently working height over 5000m
Optional equipped CAFS foam system and Dry Powder system

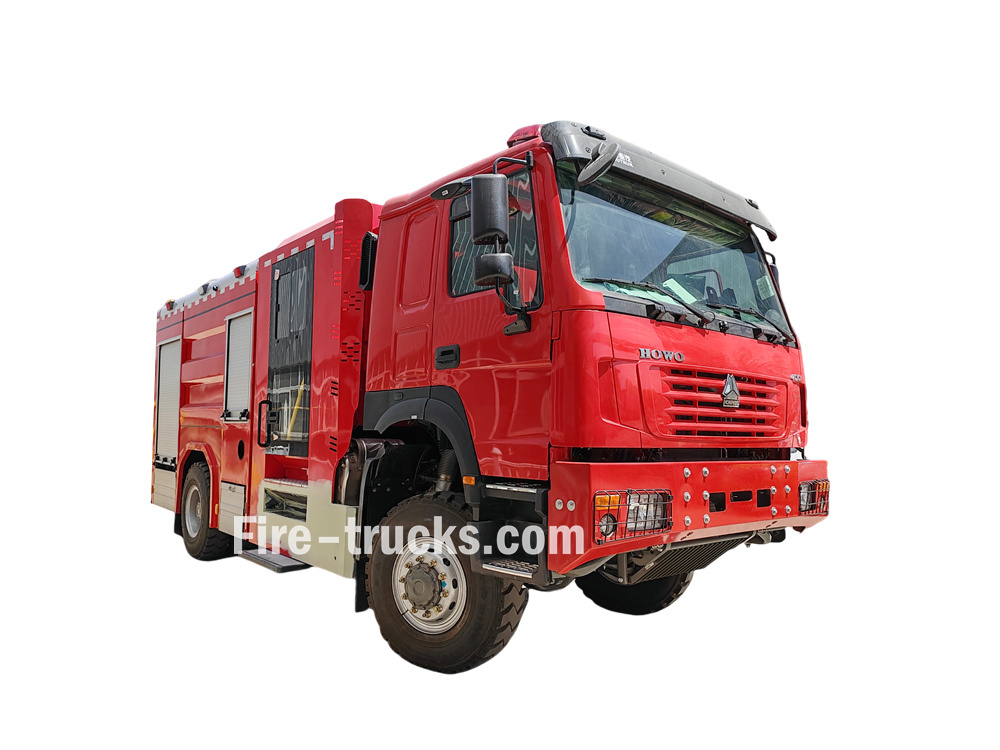

HOWO 4×4 Firefighting Truck is a specialized fire rescue vehicle with off-road capabilities, built on the SINOTRUK HOWO 4WD chassis. It is equipped with a high-power fire pump, water tank, foam tank, fire monitor, and modular rescue equipment. This vehicle is suitable for various scenarios including forest firefighting, petroleum exploration, geological disaster rescue operations, and fire suppression in narrow urban areas.
» Ⅱ. Product Parameter :
|

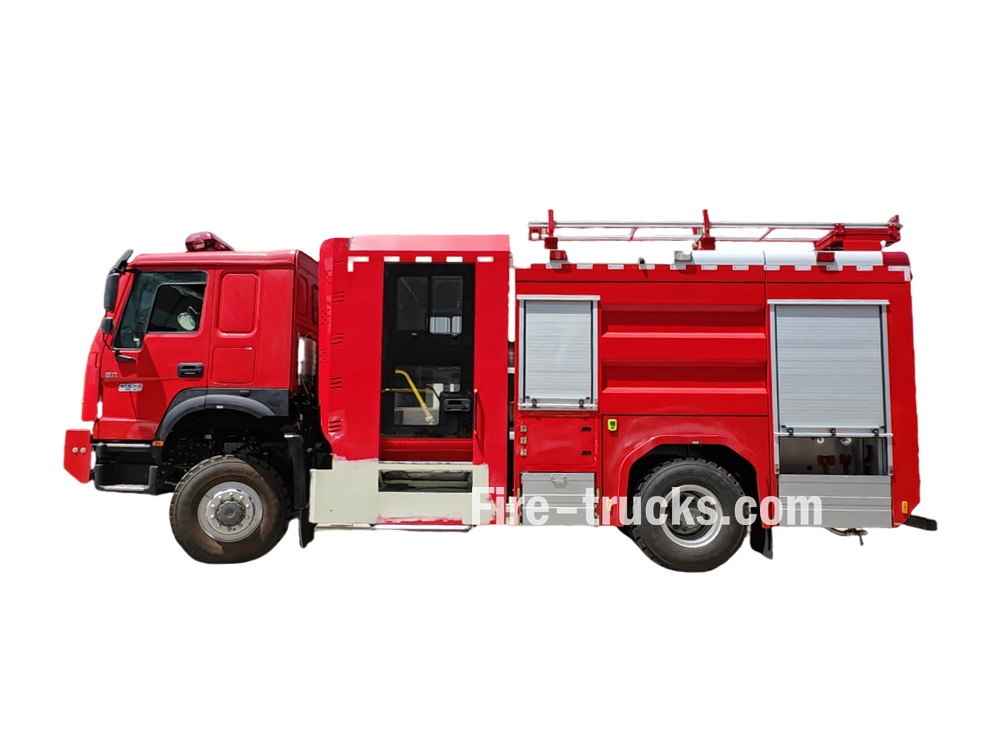

Nigeria HOWO 4x4 wildland fire engine |
||
|
Overall dimension |
8620×2550×3620(mm) |
|
|
GVW |
22000kg |
|
|
Chassis brand |
SINOTRUCK HOWO |
|
|
Traction type |
4 × 4, left hand drive |
|
|
Chassis description |
||
|
Chassis model |
ZZ2167 |
|
|
Wheelbase |
4600mm |
|
|
Tire specification |
12.00R20 18PR |
|
|
Tire quantity |
6+1 |
|
|
Engine |
Engine model |
WP10.380E32 |
|
Emission level |
Euro 3 |
|
|
Displacement/output |
9726ml/280kw |
|
|
Horse power |
380hp |
|
|
Gear box |
Model |
HW19710 |
|
Number of gears |
10 forward gears& 2 reverse |
|
|
Axle |
Front |
HF-7T |
|
Rear |
ST-16T |
|
|
Fuel tanker |
Capacity |
400L |
|
Upper-body description |
||
|
Crew cabin |
Type |
Independent crew cabin at rear |
|
Number of seats |
6 |
|
|
Tanker capacity |
Water tanker |
6 CBM (6000 liters), carbon steel |
|
Foam tanker |
2 CBM (2000 liters), stainless steel |
|
|
Fire pump |
模型 |
CB10/60 |
|
流动 |
60升/秒 |
|
|
压力 |
1.0兆帕 |
|
|
吸力深度 |
7米 |
|
|
火警 |
模型 |
PL8/48 |
|
流动 |
48升/秒 |
|
|
压力 |
0.8兆帕 |
|
|
范围 |
水面≥70米；泡沫≥60米 |
|
|
旋转角度 |
水平360°
|
|
|
软管卷盘 |
模型 |
JPSC1.6 |
|
内径 |
32毫米 |
|
|
软管长度 |
30米 |
|
|
入口压力 |
1.6兆帕 |
|
|
枪械流动 |
≥120 升/分钟 |
|
|
其他配置 |
配备三明治式动力输出装置、管道系统；
|
|
» Ⅲ. 产品详情：

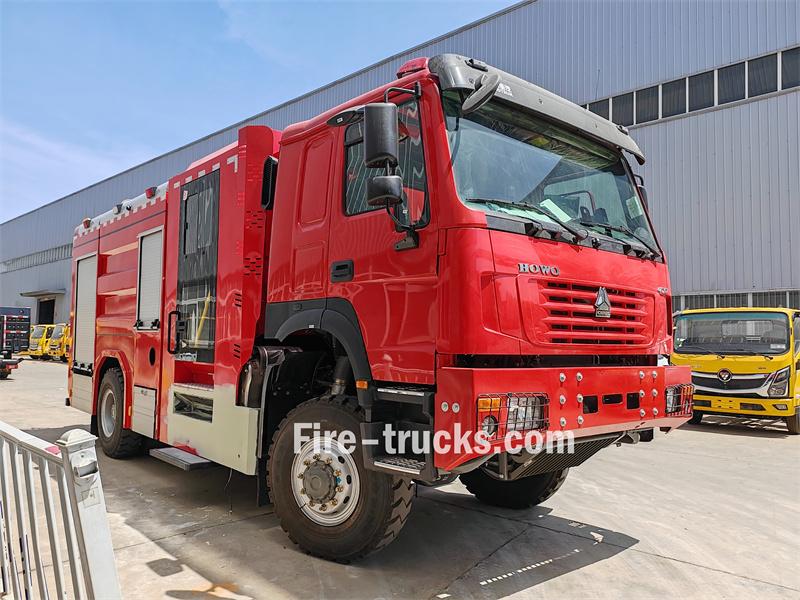

1. 中国重汽豪沃底盘

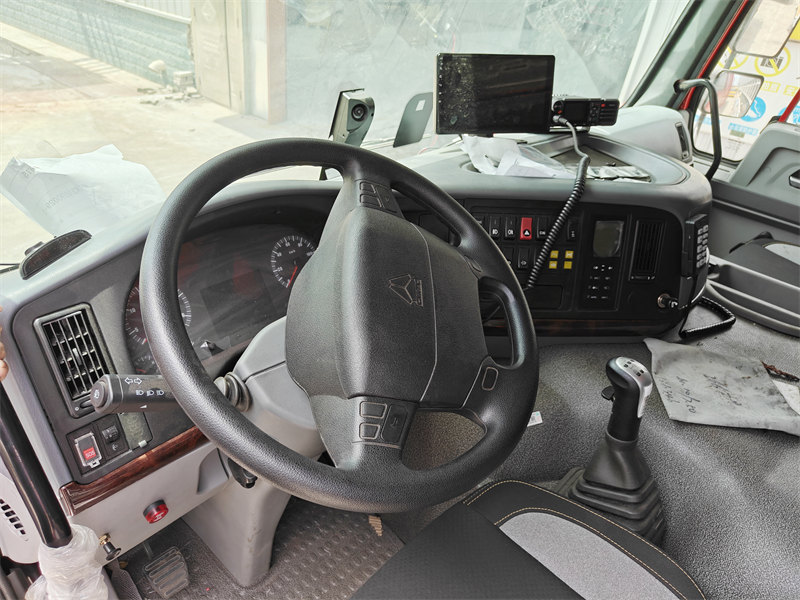

HOWO HW76驾驶室，带空调、助力转向、中控锁、电动车窗和车门、多功能钢制方向盘、多功能液晶仪表盘等。

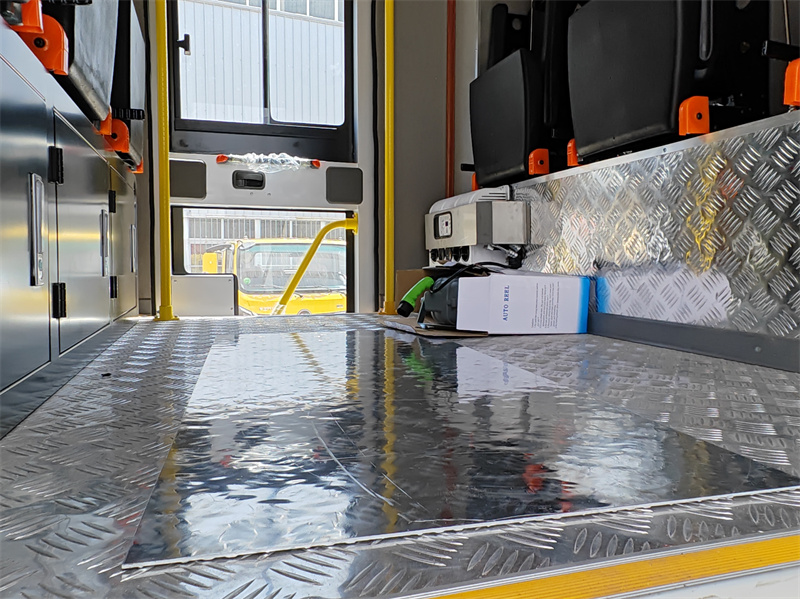

2. 独立船员舱
配备独立乘员舱，最多可容纳八名消防员。

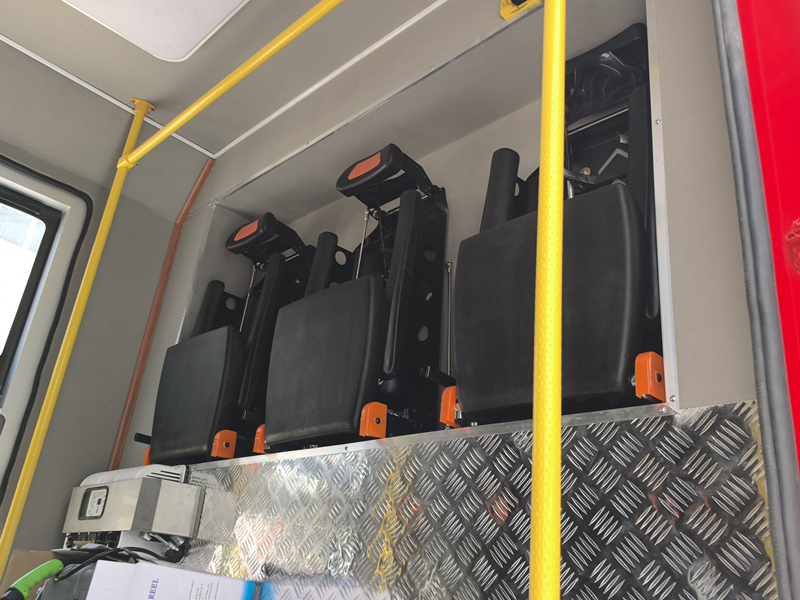

3. 后排呼吸器座椅
乘员舱内所有座椅均配备安全带。后排座椅可拆卸，并带有呼吸器支架。

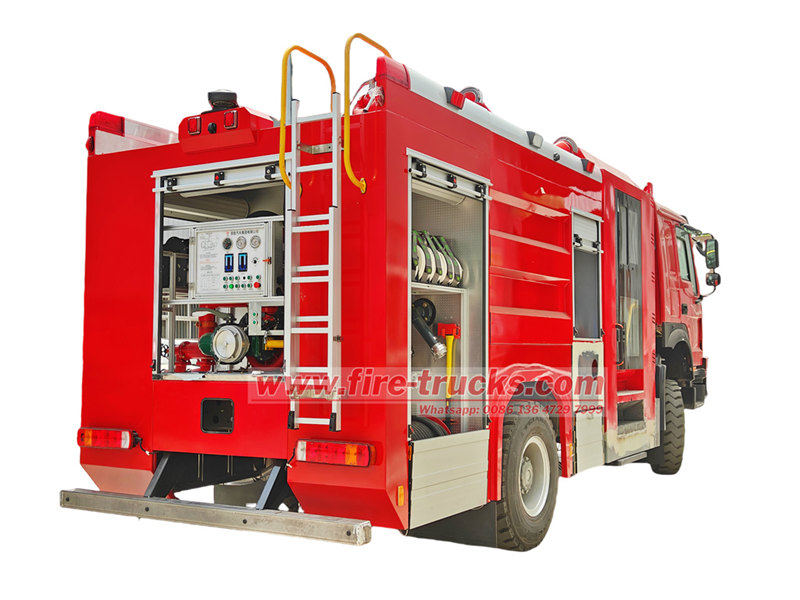

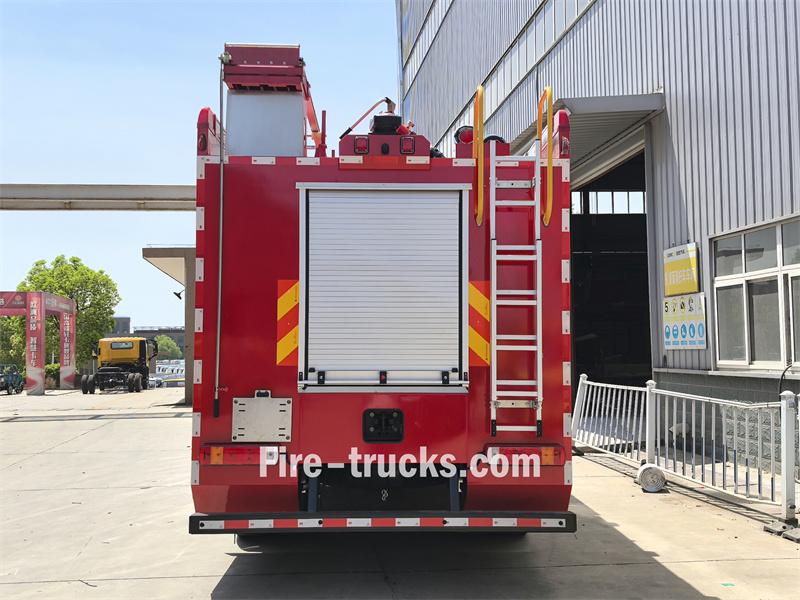

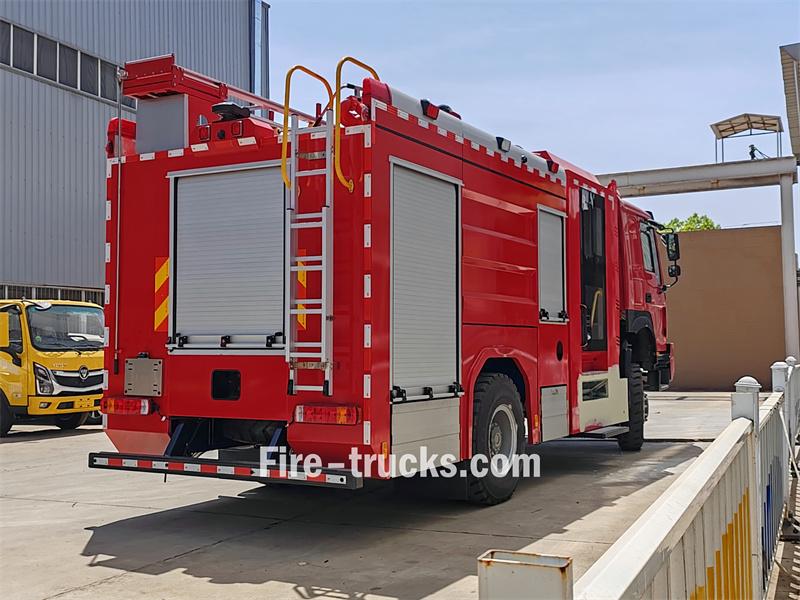

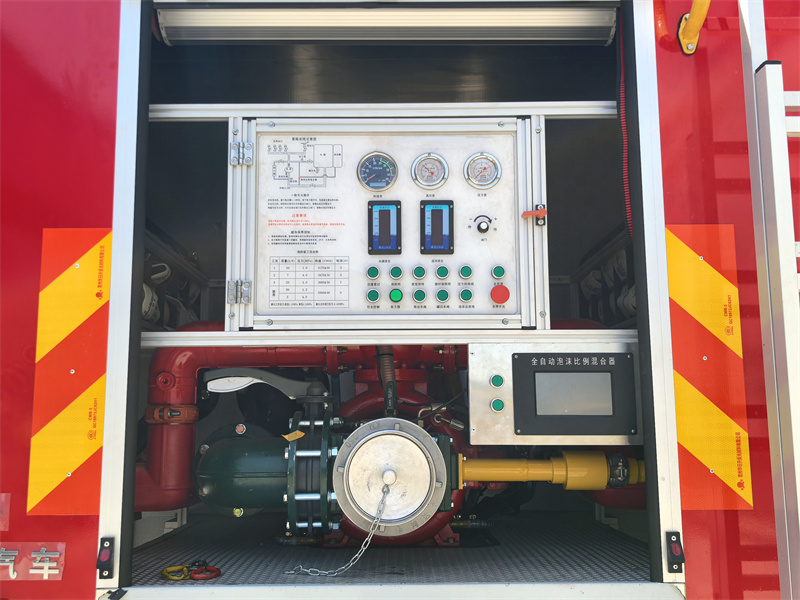

4. 带控制面板的泵房
车辆后部设有泵房，两侧及后部均配有铝合金卷帘门。泵房内设有照明灯，并有常用设备的存放空间。

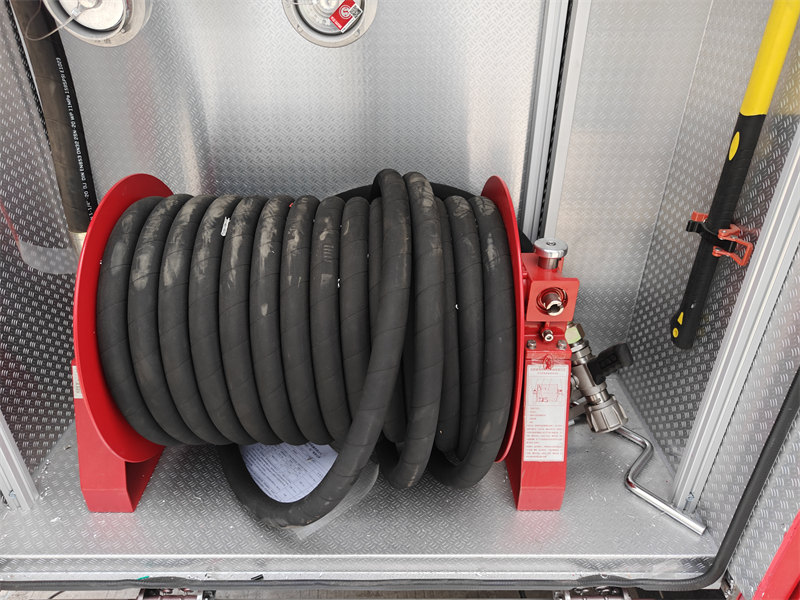

5. 消防水带卷盘
该卡车配备了长度为 30 米、直径为 32 毫米的软管卷盘，流量高达 120 升/分钟。

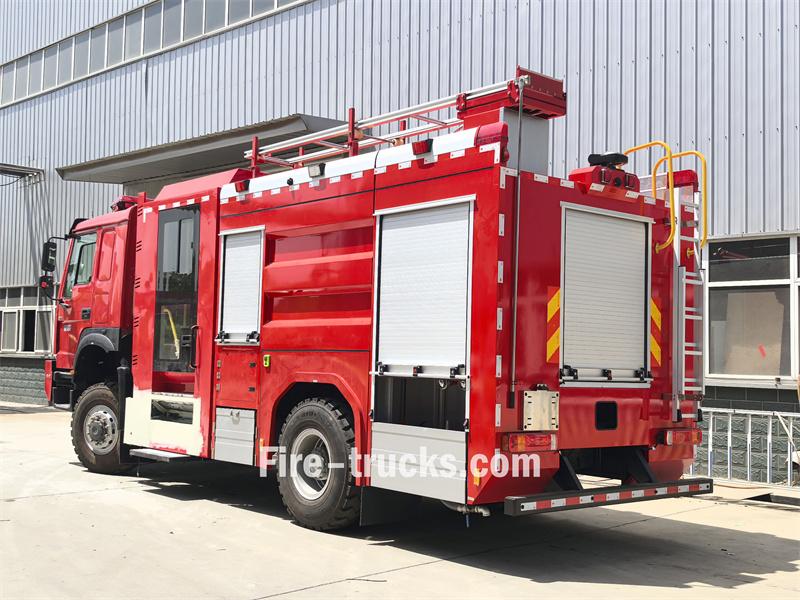

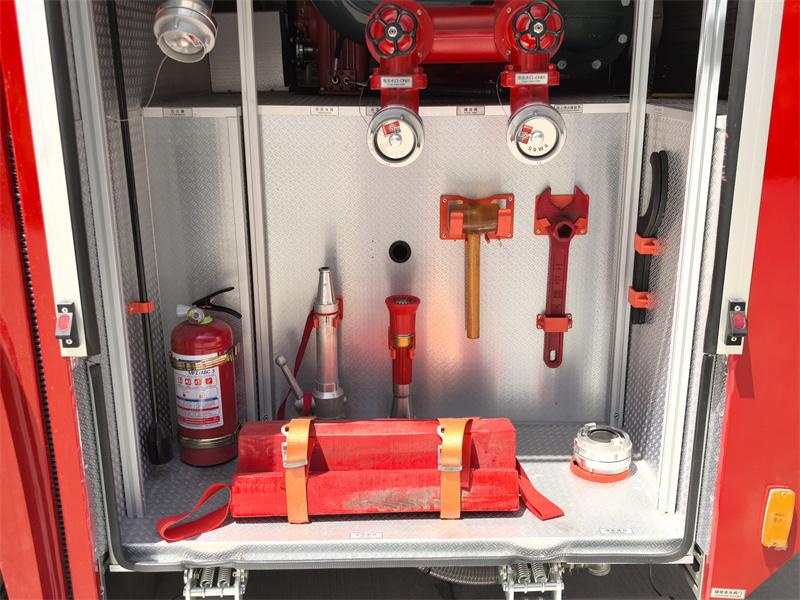

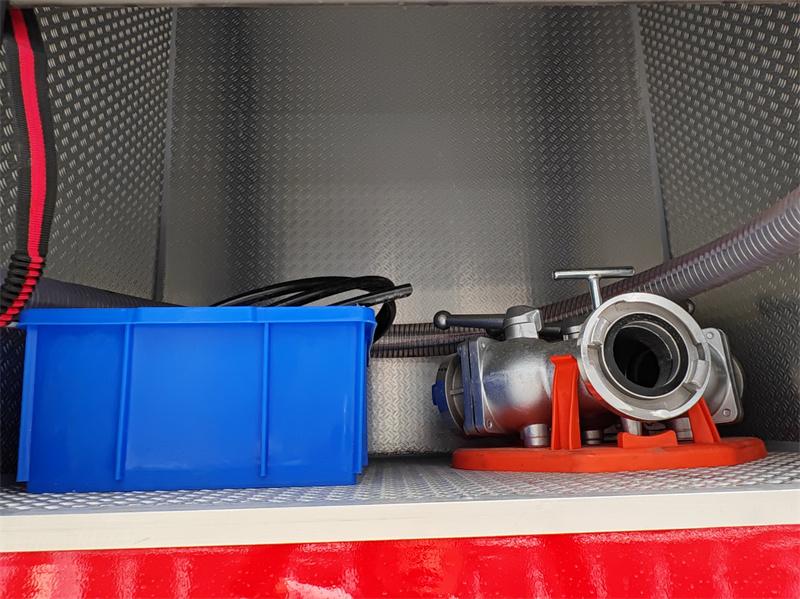

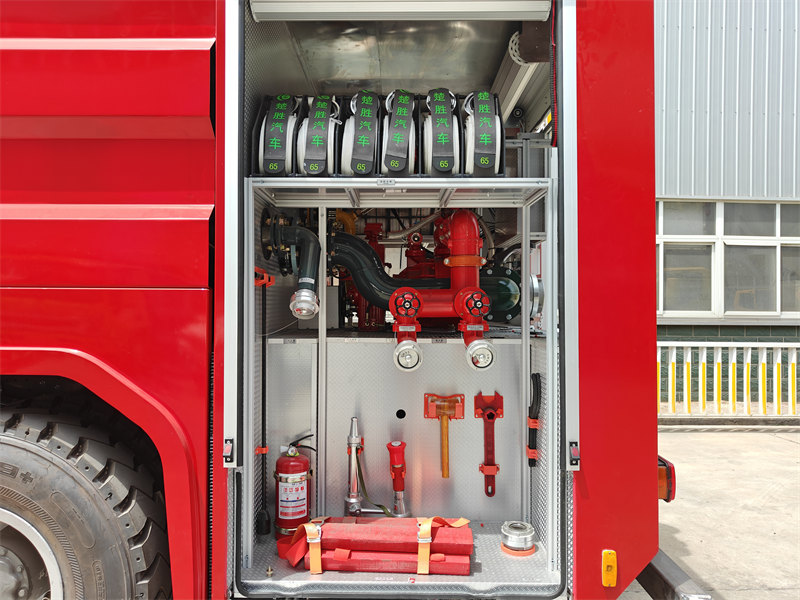

6. 消防车油罐车体，配备全套消防工具
R03 RAL3000 涂装，铝合金装饰，消防工具收纳方便，带红蓝白三色 LED 灯
1.我们可以做设计 适用于豪沃4x2、4x4、6x4、6x6、8x4、8x8驱动的消防车
2. 可选配CAFS泡沫系统和干粉系统
3. 不锈钢水箱、铝合金水箱或PP水箱均可定制
我们POWERSTAR还为各种类型的卡车和拖车提供备件（原装、OEM和替换件）。
我们提供折扣和优质产品，以确保客户的卡车和拖车处于良好的工作状态。
Howo TX460 6x4 12立方米泡沫消防车采用中国重汽TX 6x4驾驶室，轴距为4600+1400毫米，搭载中国重汽MC11.46-61发动机和HW19710变速箱。车体前部为设备舱，用于存放各种消防器材；中部设有9立方米碳钢水箱和3立方米泡沫液箱；后部为泵房，配备CB10/60-RS消防泵、控制面板及部分辅助消防器材。车顶水箱和泡沫液箱均设有检修孔，并配备PL8/48型消防炮。
细节
豪沃TX 4x2 7.5立方米泡沫消防车采用豪沃TX底盘，轴距4700毫米。它配备潍柴WP4.6NQ240E62发动机和中国重汽HW95508STCL变速箱。上部车体前部为设备箱，用于存放辅助消防设备。中部设有5.5立方米碳钢水箱和2立方米不锈钢泡沫液箱。后部泵房配备CB10/40-LC(BS)消防泵、控制面板、消防设备、位于水箱顶部的PL8/32消防炮以及两个欧标人孔。
细节
PL48型消防车泡沫炮是一款手动消防水炮，可喷射泡沫和水。其额定流量为48升/秒，额定压力为0.8兆帕，水喷射距离≥70米，泡沫喷射距离≥60米。该水炮可水平360°旋转，俯仰角为-30°至70°，操作灵活。
细节

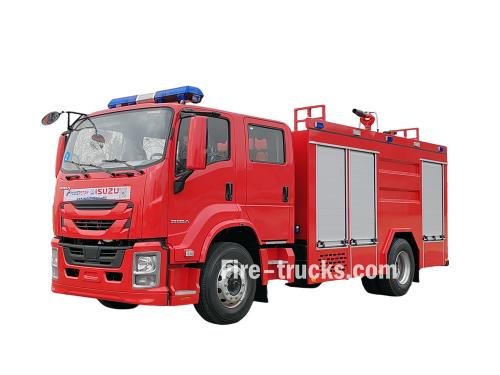

五十铃FVZ GIGA 6立方米泡沫消防车基于五十铃FVZ GIGA底盘打造，轴距为4500毫米。它搭载五十铃6HK1-TCG60发动机和Fast 9速变速箱。车身前部为设备舱，中部装有5000升碳钢水箱和1000升不锈钢泡沫液箱，后部为泵房，配备CB10/40-XZ消防泵、控制面板、消防水带、消防器材等。车顶装有PL8/32型消防炮。
细节
豪沃TX 4x2 7.5立方米泡沫消防车采用豪沃TX底盘，轴距4700毫米。它配备潍柴WP4.6NQ240E62发动机和中国重汽HW95508STCL变速箱。上部车体前部为设备箱，用于存放辅助消防设备。中部设有5.5立方米碳钢水箱和2立方米不锈钢泡沫液箱。后部泵房配备CB10/40-LC(BS)消防泵、控制面板、消防设备、位于水箱顶部的PL8/32消防炮以及两个欧标人孔。
细节
五十铃GIGA 6X4 10立方米泡沫消防车基于五十铃GIGA 6X4底盘打造，总重35吨，轴距4800+1370毫米。它搭载一台五十铃6WG1-TCG62 520马力发动机和一台Fast 12速变速箱。车身前部为设备舱，中部装有8000升碳钢水箱和2000升不锈钢泡沫液箱，后部为泵房，配备CB10/140-XZ消防泵、控制面板、消防水带、消防器材等。车顶装有一台PL8/64型消防炮。
细节
