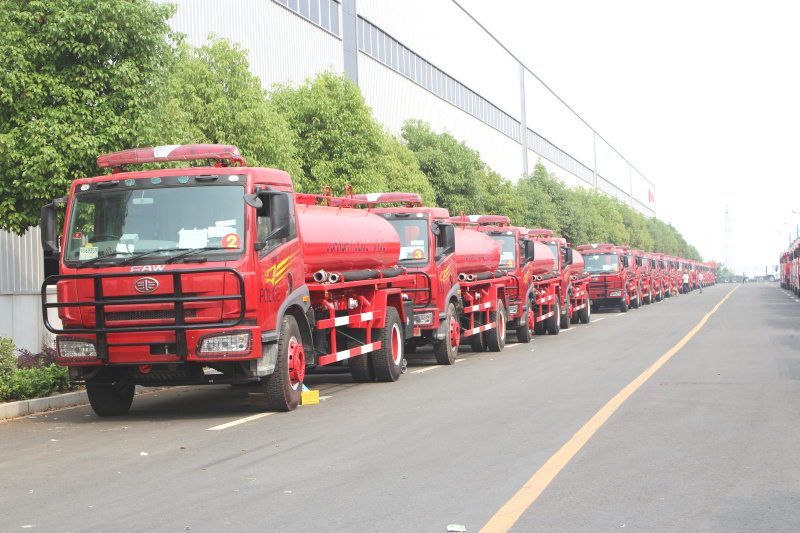

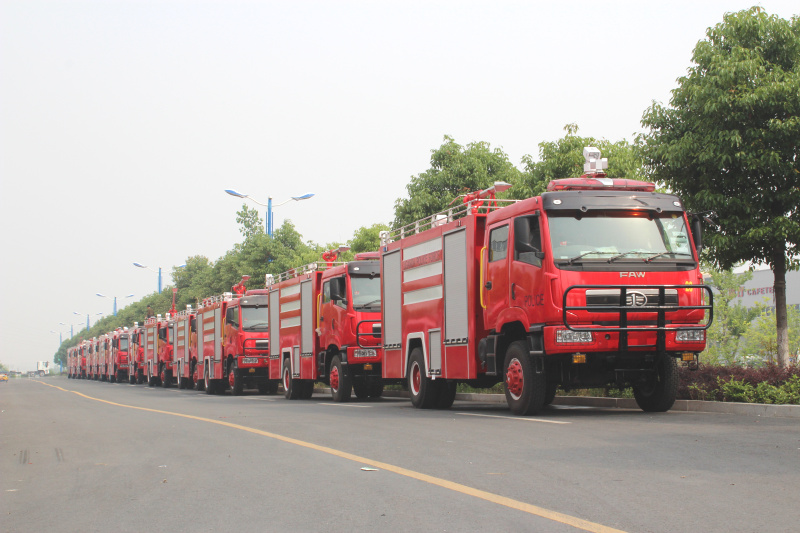

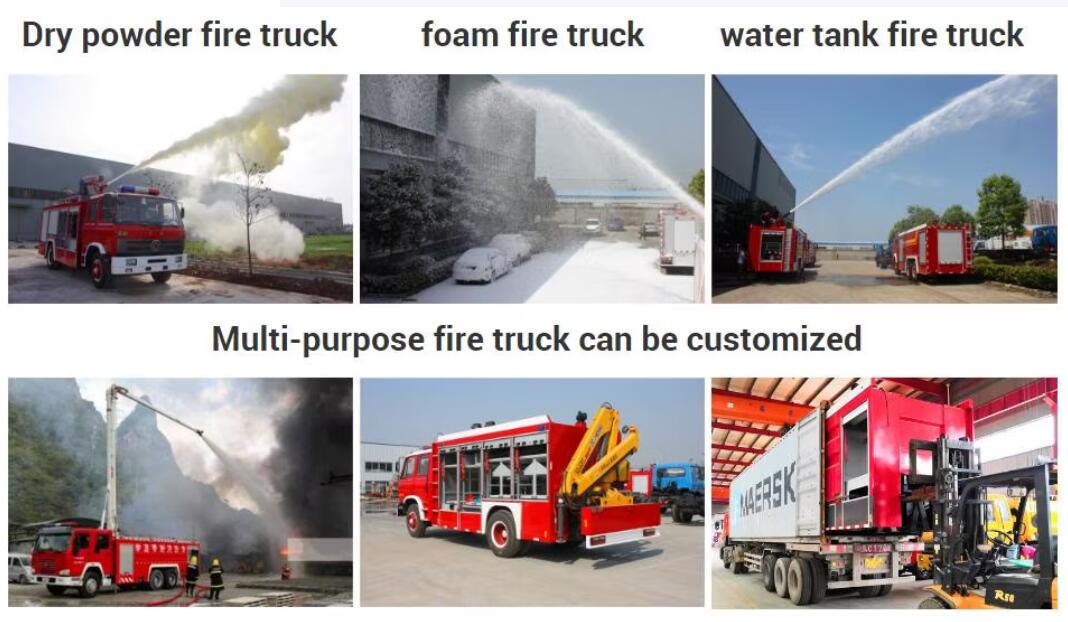

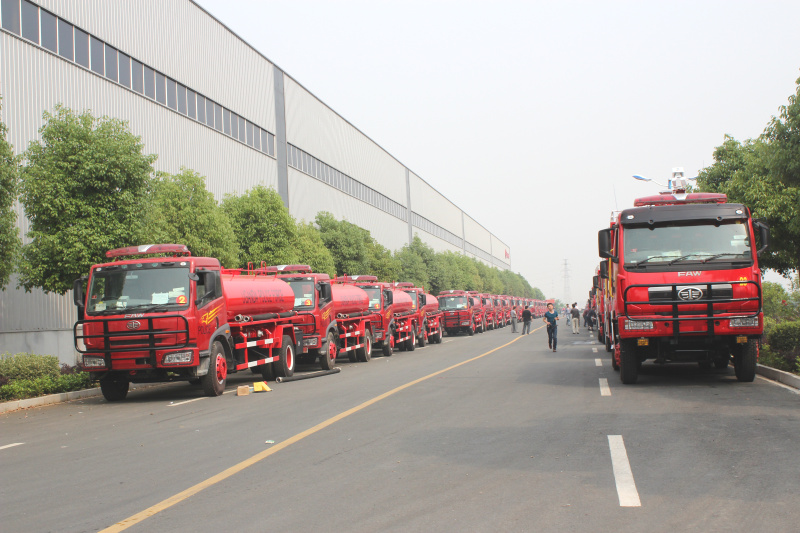

Powerstar Trucks Manufactures Custom Emergency Response Vehicles and Fire Trucks For several years, Powerstar trucks Emergency Response has established its legacy as the leading full-line manufacturer of custom fire apparatus with an expertise in foam water fire trucks and rescue fire vehicle.  Building on the legacies that firefighters trust, Powerstar trucks delivers flexible, strategic, specialized solutions to meet each unique fire department need, putting first responders first.   120 units Rescue fire truck for delivery   65 units Rescue Fire Truck export to Uganda Police   Water Fire trucks Foam fire fighting vehicle   Fire trucks are mainly classified into four categories according to their function: fire-fighting trucks, aerial ladder trucks, special-purpose fire trucks, and logistical support fire trucks.   01, Fire-fighting trucks are the main force for directly extinguishing fires, including: * **Water Tank Fire Trucks:** Equipped with their own water tank and pump, suitable for extinguishing general fires. * **Foam Fire Trucks:** Specifically designed for extinguishing fires involving flammable liquids such as oil. * **Dry Powder Fire Trucks:** Suitable for extinguishing gas and electrical fires. * **Carbon Dioxide Fire Trucks:** Used to protect valuable equipment and precision instruments. * **Foam-Dry Powder Combined Use Trucks:** Can use both extinguishing agents simultaneously, with a wide range of applications.   02, Aerial Ladder Fire Trucks are used for rescue and firefighting in high-rise buildings, mainly including: * **Ladder Fire Trucks:** Equipped with a telescopic ladder, capable of rescuing people and extinguishing fires at heights. * **Aerial Spray Fire Trucks:** Use a remotely controlled boom to spray extinguishing agents over long distances. * **Aerial Platform Fire Trucks:** Provide a hydraulic lifting platform for rescue and firefighting.       Fire truck application   03, Specialized fire trucks are responsible for specific tasks, such as: * **Rescue and Disaster Relief Fire Trucks:** Equipped with demolition tools and lifting equipment, used for accident rescue. * **Lighting Fire Trucks:** Provide high-intensity lighting for nighttime rescue operations. * **Smoke Extraction Fire Trucks:** Used for smoke extraction operations in underground fires.   04, **Logistical Support Fire Trucks:** Primarily provide logistical support to the fire scene, such as: * **Water Supply Fire Trucks:** Provide a continuous water supply to fire trucks at the front lines. **Equipment Fire Trucks:** Transport and replenish various firefighting equipment. Powerstar trucks fire truck factory strong technology

Philippines Manila customers purchased  Isuzu GIGA VC66 heavy duty fire fighting truck from POWERSTAR TRUCKS, which equipped with Japanese ISUZU diesel engine 6WG1-TCG61 with horse power 338kw / 460HP, which is a 6-cylinder, 4-stroke, water-cooled, turbocharged and intercooled engine, designed displacement of 15681cc standard, matched working with international standard FAST 12 shift manual transmission gearbox, 12 shift move forward and 2 shift move back, very lower fuel consumption, totally installed 13 units tubeless tires with model 315/80R22.5 model, including one spare tire, very suitable for multiple kinds of road condition. and service for fire extinguishing project for multiple area. Fully rely on original ISUZU GIGA VC66 truck chassis, modify GIGA double-row cab with front 2+1 normal seats and rear 4 SCBA seats, in cabin equipped A/C with heating and cooling function for comfortable driving. And truck mounted with full stainless steel SS304 material tanker body, equipped Top one Chinese brand XIONGZHEN CB10/60 fire pump on rear pump room, matched working with WESTER PL8/48 fire monitor on the top of tanker body, full sets fire fighting rescue equipment, all make truck an ideal vehicle for fire extinguishing project in Manila street and community. Also truck matched with full sets English version catalogue for service, including User's Manual for operation guidance, Truck Manual for GIGA truck usage, Spare Parts Manual for maintenance.         Isuzu 7,000L Water 3,000L Foam Fire Fighting truck   POWERSTAR factory is professional manufacturer in truck area,guarantee all products Brand-New and High-Quality.     »Ⅰ. Isuzu 6WG1 Fire Truck Main Features :    ★ 338KW / 460HP powerful 6WG1 diesel engine, 100,000 Km without prblem. ★ ISUZU VC66 newly GIGA cabin,  Europen design ★ Double row cabin, with rear 4 SCBA seats ★ Mounted CB10/60-XZ fire pump, 60L/s flow rate, super reliable ★ Top mounted PL8/48 foam fire cannon, durable service ★ Integrated control system, with panel at rear   CB10/60-XZ fire pump Model:     CB10/60-XZPressure:      1.0MpaMax. Working Pressure:      1.232MpaFlow Rate:      60L/s at 1.0Mpa, speed 3286±50r/min, power 102kW, suction depth 3m42L/s at 1.3Mpa, speed 3519±50r/min, power 106kW, suction depth 3m30L/s at 1.0Mpa, speed 3120±50r/min, power 73kW, suction depth 7mSpeed Ratio:      1:1.44   PL8/48 Fire Monitor   Model:     PL8/48 Pressure:      0.8Mpa Working Range:      Foam ≥ 70m and Water ≥ 60m Vertical Rotation:      -45° ~ +70° Horizontal Rotation:      0° ~ 360° Flow Rate:      48L/s       » Ⅱ. Isuzu Fire Rescue Truck technical drawing:     ISUZU GIGA VC66 fire engine mounted wi...

Factory sale ISUZU 4x4 offroad pick up fire truck use ISUZU TAGA all wheel drive chassis, integrates an excellent power system to challenge all kinds of difficult roads. Isuzu pickup fire rescue truck is equipped with full stainless steel SS304 material tanker assembly, including 500 liters water tank and 100 liters foam tank, and a professional independent fire pump JBQ4.5/9 to be mounted at rear pump room, with a long spray distance and optional control panel language. It also provides a variety of optional configurations to meet different needs, and top mounted with PS20 fire monitor for water jetting. This ISUZU Pickup 143HP fire pumper truck provides a solid guarantee for fire safety and demonstrates excellent performance and flexibility. The original double-row cab of the Isuzu fire fighting truck provides enough space and quality to load firefighting equipment and maintain good driving performance. The cab can accommodate 5 firefighters and is equipped with air conditioning to ensure that the driver can stay comfortable in any weather conditions. And all guarantee the ISUZU 600L foam fire engine an ideal fire rescue vehicle service for Albania market. And below User Manual are equipped for safety operation and working.     »Ⅰ. Isuzu Pick Up Fire Truck Main Features :    ★ 105KW / 143HP powerful 4KH1 engine, 100,000 Km without prblem. ★ ISUZU TAGA newly pickup cabin,  Europen design ★ Original double cabin, suitable for 5 firefighters ★ Independent JBQ4.5/9 fire pump, super reliable ★ Top mounted PS8/20 fire cannon, durable service    » Ⅱ. Pick up fire tender overview:   ISUZU 4x4 offroad AWD Water Foam Fire Fighting Truck is an all terrain fire rescue trucks, which service for multiple aera, including community, forest, factory, etc. Due to it is offroad ability and narrow appearance, this Isuzu Pickup fire engine can succeed have multiple mission completed. And to make our fire trucks more suitable, below are options for different clients.   -----Tanker material: Carbon steel, stainless steel, aluminum alloy, PP material -----Fire Pump: Based on tanker body and jetting distance, optional American Darley brand -----Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)               » Ⅲ. Attractive Appearance: ISUZU 4x4 AWD pick up fire truck is powerful and responsive, can quickly reach the fire scene, and can easily pass through complex terrain. The top fire cannon has a long range and a large flow rate, and the longer 50m fire fighting hose reel with gun can accurately strike the fire source and efficiently cover and isolate. And pickup fire pumper vehicles equipped with full set rescue tools. For different fire scenes, such as buildings, forests, oil tanks and hazardous chemical leaks, there are adaptive tactics that can be used for quick battles or precise attacks. And...

Newly designed and manufactured ISUZU GIGA 4X water foam dry powder fire fighting truck is a high performance ISUZU fire engine that export to Nigeria Lagos, which equipped with 4HK1-TCG60 diesel engine with 150KW/205HP and emission 5193cc, matched working with MLD 6 shift manual transmission gearbox, 6 forward and 1 reverse, efficiently power output and lower fuel consumption, also ensure faster response and stable driving. Isuzu 5000L fire engine equipped with totally 5000L tanker body kit, including 3000L water tanker, 1000L foam tanker and 1000L dry powder tanker, all tanker use stainless steel SS304 material, square shape design with baffle inside, top matched with DN500 manhole cover and lock for safety.   Isuzu powder fire pumper trucks are equipped with CB10/40 fire pump, with efficiently flow rate 40L/s, matched working with PL8/32 water foam fire monitor with efficiently mixed water foam flow rate 32L/s, working with multiple fire rescue equipment to make the ISUZU giga 4X fire fighting vehicle an ideal vehicle for fire extinguishing and people rescue, and efficiently working in Nigeria Lagos country. Also truck matched with Dry Powder Tanker with model R25-006 series, designed pressure 1.55Mpa and designed volume 1000liters, also equipped with efficiently nitrogen bottles for usage. And to guarantee ISUZU fire trucks operation and performance more efficience, below attached manual are for equipment for Nigeria customer guidance.      ♦ ISUZU GIGA Dry Powder Fire Fighting Truck ♦       POWERSTAR ISUZU Dry Powder Fire Truck Manual export Nigeria ISUZU fire fighting trucks control panel ISUZU fire rescue truck detailed component   »Ⅰ. Isuzu Fire Truck Main Features :    ★ 205 Hp powerful 4HK1 engine, 100,000 Km without prblem. ★ ISUZU GIGA new model 4X cabin,  Europen design ★ ISUZU technology axle, extremely suitable for AFRICA. ★ China famous CB10/40 pump, super reliable ★ Top designed PL8/32 fire cannon, durable ★ Dry powder assembly, matched Nitrogen bottles          » Ⅱ.ISUZU Fire Tender manufacturer:   ISUZU GIGA Water Foam Dry Powder Fire Fighting Truck is a fully functional medium-sized main battle fire truck, integrating strong mobility, ample extinguishing agent reserves, and diverse combat capabilities. In terms of power, it features a Weichai engine paired with a Sinotruk transmission, providing strong power and efficient transmission. -----Tanker material: Carbon steel, stainless steel, aluminum alloy, PP material -----Fire Pump: Based on tanker body and jetting distance, optional American Darley brand -----Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)  Isuzu rescue fire trucks for production ISUZU 205HP fire fighting truck for production Isuzu GIGA 4X powder fire fighting truck   » Ⅲ. Isuzu Fire Pumper Advanced Features: Isuzu combin...

Moldova customers purchased 6 units Isuzu GIGA 4X airport fire rescue truck from POWERSTAR TRUCKS, and service for fire extinguishing project for multiple area. Fully rely on original ISUZU GIGA 4X truck chassis, modify GIGA 4X double-row cab with front 2+1 normal seats and rear 4 SCBA seats, in cabin equipped A/C with heating and cooling function for comfortable driving. Equipped with Japanese ISUZU diesel engine 4HK1-TCG60 with horse power 151kw / 205HP, which is a four-cylinder, four-stroke, water-cooled, turbocharged and intercooled engine, designed displacement of 5193cc standard, matched working with ISUZU MLD 6 shift manual transmission gearbox, 6 shift move forward and 1 shift move back, very lower fuel consumption, totally installed 7 units tubeless tires with model 295/80R22.5 model, very suitable for multiple kinds of road condition.           Isuzu 5,000L Water 1,000L Foam Fire truck   POWERSTAR factory is professional manufacturer in truck area,guarantee all products Brand-New and High-Quality.     » Ⅰ. Firefighting Applications: ISUZU GIGA 4X newly designed 205HP fire fighting truck mounted with full set fire fighting equipment and people rescue tools, with efficiently water and foam jetting distance and flow rate, and suitable for multiple fire extinguishing work in city, factory, community, etc. Detailed advanced features as below:   1. ISUZU GIGA 4X Truck: Japanese ISUZU 4HK1-TCG60 model with 151KW / 205HP diesel engine   2. SS304 Material Tanker: Customized 5000L water tanker and 1000L foam tanker, all based on stainless steel SS304   3. CB10/40 Fire Pump: Rear mounted, with independent room, available pump in and pump out function   CB10/40 fire pump Model:     CB10/40Pressure:      1.0MpaMax. Working Pressure:      1.38MpaFlow Rate:      40L/s at 1.0Mpa, speed 3330±50r/min, power 60kW, suction depth 3m28L/s at 1.3Mpa, speed 3540±50r/min, power 59kW, suction depth 3m20L/s at 1.0Mpa, speed 3335±50r/min, power 42kW, suction depth 7mSpeed Ratio:      1:1.542     4. PL8/36 Fire Monitor: Top mounted, manual operaiton model with available jetting distance over 55m, efficiently and durable   PL8/36 Fire Monitor   Model:     PL8/36 Pressure:      0.8Mpa Working Range:      Foam ≥ 60m and Water ≥ 48m Vertical Rotation:      -45° ~ +70° Horizontal Rotation:      0° ~ 360° Flow Rate:      36L/s   5. Integrated Control Device: ISUZU fire fighting trucks equipped with integrated control device at rear pump room, convenient and smart.       » Ⅱ. Fire Engine Advanced Features:   ISUZU GIGA 4X heavy duty rescue fire engine are an ideal fire fighting truck for fire extinguishing and people rescue. Which ha...

五十铃消防车4HK1-TC发动机维护手册，也称为五十铃消防车发动机修理手册或五十铃消防车工程师手册。五十铃消防车4HK1-TC发动机是一款高性能柴油发动机，广泛应用于消防车，以其可靠性、耐用性和高效率而闻名。为确保发动机长期稳定运行，定期维护和修理至关重要。本文将简要介绍五十铃消防车4HK1-TC发动机维护手册的主要内容，以帮助维护人员更好地理解和操作。1. 发动机概述4HK1-TC发动机是一款4缸直列涡轮增压柴油发动机，排量为5.2升，最大功率为190马力。该发动机采用先进的共轨燃油喷射系统和电子控制单元（ECU），实现了更高的燃油效率和更低的排放。2. 日常维护日常维护是确保发动机正常运行的基础。维护手册详细列出了日常检查项目，包括油位和冷却液位检查、空气滤清器清洁或更换、燃油滤清器更换等。此外，手册还提供了发动机油和机油滤清器定期更换的建议，通常每5000公里或每6个月更换一次。3. 故障诊断维护手册包含详细的故障诊断流程，以帮助维护人员快速定位和解决问题。手册列出了常见的故障代码及其含义，并提供了相应的解决方案。例如，如果发动机动力不足，手册将指导维护人员检查燃油系统、涡轮增压器和排气系统等。4. 大修和零件更换对于需要大修或更换零件的发动机，维护手册提供了详细的步骤和注意事项。例如，在更换活塞环、气门导管和轴承等关键部件时，手册将详细说明拆卸和安装步骤，以及所需的工具和扭矩规格。5. 安全预防措施维护手册特别强调安全操作的重要性。在进行任何维护操作之前，必须确保发动机已完全冷却并切断电源。此外，手册还提供了个人防护设备的使用建议，例如手套、护目镜和防护服。第一节A发动机控制系统目录页码发动机控制系统.. 1A- 4 注意事项 1A- 4功能和工作原理. 1A-5 零件配置图.. 1A-21 电路图.. 1A-25 如何诊断故障1A-42 通过故障诊断仪进行故障诊断操作程序1A-48 功能检查概述.. 1A-50 查询. 1A-51 发动机控制系统检查. 1A-53 故障诊断仪数据列表1A-55 故障诊断仪数据列表内容1A-58 故障诊断仪输出1A-64 故障诊断仪启动失败. 1A-65 故障诊断仪通信故障（参考）1A-67 与ECM通信故障（参考）1A-71 启动系统确认. 1A-74 发动机故障指示灯（MIL）点亮电路系统确认. 1A-77 发动机故障指示灯（MIL）闪烁电路系统确认. 1A-78 废气再循环（EGR）控制系统检查. 1A-80 预热控制系统检查. 1A-84 排气制动/进气限制控制系统检查. 1A-87 诊断故障码（DTC）概述.. 1A-92 DTC P0016（闪码16）1A-95 DTC P0087（闪码225）1A-97 DTC P0088（闪码118）1A-103 DTC P0089（闪码151）1A-109 DTC P0091, P0092（闪码247）1A-112 DTC P0093（闪码227）1A-116 DTC P0107, P0108（闪码32）1A-122 DTC P0112, P0113（闪码22）1A-127 DTC P0117, P0118（闪码23）1A-132 DTC P0122, P0123（闪码43）1A-137 DTC P0182, P0183（闪码211）1A-142 DTC P0192, P0193（闪码245）1A-147 DTC P0201, P0202, P0203, P0204（闪码271,272,273,274）................................................... 1A-157DTC P0217（闪码542）...................................................................................................... 1A-170DTC P0219（闪码543）...................................................................................................... 1A-172 DTC P0234（闪码42）........................................................................................................ 1A-175DTC P0299（闪码65）........................................................................................................ 1A-178DTC P0335（闪码15）........................................................................................................ 1A-182 DTC P0336（闪码15）........................................................................................................ 1A-187 DTC P0340（闪码14）........................................................................................................ 1A-190 DTC P0341（闪码14）........................................................................................................ 1A-195 DTC P0380（闪码66）........................................................................................................ 1A-198 DTC P0381（闪码67）........................................................................................................ 1A-201 DTC P0404（闪码45）........................................................................................................ 1A-205 DTC P0409（闪码44）................................................................

消防救援重型卡车工程图纸，也称五十铃重型消防车图纸。当今，随着城市化进程不断加速，高层建筑、地下空间和复杂工业设施的增加，对消防救援提出了更高的要求。传统的消防车往往难以应对这些复杂的场景。因此，设计一款能够应对未来挑战的重型消防车，已成为消防技术发展的重要方向。基于2025年的技术背景，本文将探讨一款创新型重型消防车的图纸设计，并分析其独特性。  1. 设计理念：智能化与模块化结合未来的重型消防车不仅仅是一台“灭火机器”，更是一个集智能化、模块化、多功能于一体的移动救援平台。图纸设计的核心理念是“智能感知、快速响应、多场景适应”。通过人工智能、物联网和模块化设计，这款消防车能够在不同场景下快速切换功能，最大限度地提高救援效率。    2. 外观设计：流线型和高强度材料在外观方面，这款重型消防车采用流线型设计，不仅降低了风阻，还提高了车辆的空气动力学性能。车身采用高强度合金材料制造，能够在高温、爆炸等极端环境下保持结构稳定性。车顶配备可伸缩的无人机发射平台，能够在火灾初期快速部署无人机进行火情侦测。 3. 动力系统：混合动力和全地形适应性动力系统采用混合动力设计，结合了柴油发动机和电动机的优点。柴油发动机提供强大的动力输出，而电动机则在低速和城市环境下实现零排放。此外，车辆配备全地形适应系统，包括可调悬挂和履带驱动，能够在山地、沼泽等复杂地形自由通行。 4. 智能设备：AI火灾分析和自动灭火车辆配备基于人工智能的火灾分析系统，能够通过传感器和摄像头实时采集火灾数据，分析火势蔓延趋势，自动生成最佳灭火方案。同时，车辆配备自动灭火装置，能够在无人操作的情况下精准投送灭火剂，降低消防员的危险性。 5. 模块化设计：多功能救援平台这款重型消防车的最大亮点在于其模块化设计。车身被划分为多个功能模块，包括灭火模块、救援模块、医疗模块和通讯模块。可以根据不同的任务需求快速更换模块。例如，在高层建筑火灾中，可以安装高空救援模块；在化学泄漏事故中，可以安装化工防护模块。这种设计极大地提高了车辆的适应性和灵活性。 6. 人机交互：虚拟现实和远程操控为了提高消防员的作战效率，车辆配备虚拟现实（VR）控制系统。消防员可以通过VR设备远程操控车辆和灭火设备，减少进入危险区域的次数。此外，车辆还支持远程操控功能，指挥中心可以通过5G网络实时操控车辆，实现无人化救援。 7. 环境保护和可持续性：绿色消防技术在环保方面，这款重型消防车采用绿色消防�

38米高空消防车技术设计图纸涵盖车辆结构、液压系统、电气系统、喷射系统和安全设计等多个关键部件，确保车辆在复杂的火灾现场能够高效、灵活、安全地运行。通过持续的技术创新和优化，38米高空消防车将在未来的消防救援中发挥更加重要的作用。 五十铃GIGA 38米高空消防车是一款专用于高层建筑、大跨度空间、石化等场所消防救援的消防设备。采用五十铃GIGA 6x4或8x4驾驶室卡车底盘，法士特12挡变速箱，专为消防应用设计。其核心功能是通过升高臂架将消防炮或喷射装置升高到38米的高度，实现远距离、精准的消防作业。该车型主要由折叠伸缩臂结构、电动遥控消防炮、罐体和二级底盘组成。臂架通常采用多节伸缩设计（例如两节臂、三节臂或四节臂），臂架末端安装有电子遥控消防炮。消防员可以通过电动遥控装置灵活调节高空喷射角度，进行喷水、洒水或泡沫喷射等消防作业。   其臂架的伸缩运动由液压缸、链条和导轮同步控制。消防水带固定在伸缩臂的一侧，随臂架一起伸缩升降。操作员可以通过旋转台上的电动控制手柄控制臂架的伸缩和旋转，确保消防作业的灵活性和效率。此外，38米高空消防车还具有超大跨度作业能力，可以实现三维协调作业和超近距离精准灭火，适用于高层建筑、大跨度空间、石化等复杂火灾场景。 以下是其技术设计图纸的详细分析。1. 车辆结构设计车辆结构设计是38米高空消防车的基础，主要包括底盘、举升臂、旋转台和驾驶室。底盘采用高强度钢材制造，确保车辆在复杂路况下的稳定性和承载能力。举升臂采用多节伸缩设计，最大举升高度为38米。臂架采用轻量化铝合金材料制成，既保证强度又减轻了车辆重量。旋转台设计为360度全旋转结构，确保消防车在作业过程中能够灵活调整喷射角度。 2. 液压系统设计液压系统是高空消防车的核心动力系统，主要由液压泵、液压缸、液压马达和液压管路组成。液压泵采用高压大流量设计，确保举升臂快速伸展和稳定支撑。液压缸采用双作用设计，实现对举升臂的精确控制。液压管路采用高强度耐压材料，确保系统在高压环境下的安全可靠性。 五十铃GIGA 38米高空云梯消防车，配备14000升水和泡沫 序号 主要项目 技术参数 2.1 型号 PST5341JXFYT38 2.2 外形尺寸 12000×2500×4000mm 2.3 满载重量 34000公斤 2.4 乘员人数 1+1（含驾驶员） 2.5 最大速度 90km/h 2.6 容量 10000升水 & 4000升泡沫。PP复合材料液罐 2.7 消防泵流量 100L/s @ 10bar 2.8 消防炮 5700L/min流量，70m射程 2.9 最大工作高度 32米 3. 铝合金上装结构3.1 驾驶室 结构：单排双门驾驶室。 座椅：1+1，配有3点式安全带。

五十铃巨型泡沫消防车二维技术设计图纸是实现车辆功能的关键。其设计需要综合考虑结构、系统、材料和工艺等多个方面。通过科学的设计和制造，水罐泡沫消防车能够在消防救援中发挥重要作用，保护人民的生命和财产安全。五十铃巨型水罐泡沫消防车是一款集水罐车和泡沫消防车功能于一体的特种车辆，广泛应用于灭火和化学泄漏处理等紧急情况。以下是水罐泡沫消防车技术设计图纸的详细分析。发动机及性能配备一台5.2L五十铃4HK1-TCG涡轮增压柴油发动机，在2500转/分时可输出205马力，扭矩为506牛米。符合欧五排放标准，确保燃油效率和低环境影响。 底盘设计基于加固的五十铃巨型4X级FTR底盘打造，总重（GVWR）为15000公斤。坚固的车架支持重型消防作业，4800毫米的轴距确保稳定性。 消防系统集成水和泡沫双剂系统，能够喷射3000升/分钟的水和1500升/分钟的泡沫。通过前置监控器操作，射程达60米。 罐容包括一个6000升的不锈钢水箱和一个1000升的泡沫浓缩液箱。两个水箱都具有耐腐蚀涂层和快速注水口。 泵规格由一台离心泵驱动，最大压力为10巴。通过符合人体工程学的阀门控制，支持同时喷水/泡沫或独立操作。 1. 整车结构设计五十铃巨型水罐泡沫消防车的整车结构设计包括底盘、车身、水箱、泡沫箱、泵房和操作平台。底盘通常采用重型卡车底盘，以确保车辆的承载能力和稳定性。车身采用高强度钢材，具有良好的抗冲击性和耐火性。水箱和泡沫箱分别用于储存水和泡沫灭火剂。 2. 水系统设计水系统是五十铃巨型水罐泡沫消防车的核心部分，包括水泵、水管、喷嘴和控制系统。水泵采用高压离心泵，能够提供稳定的水压和流量。水管采用高压耐腐蚀橡胶或复合材料，以确保在极端环境下正常运行。3. 泡沫系统设计泡沫系统由泡沫箱、比例混合器、泡沫泵和喷射装置组成。泡沫灭火剂储存在泡沫箱中，比例混合器将泡沫剂与水按一定比例混合形成泡沫溶液。泡沫泵将混合后的泡沫溶液输送到喷射装置，喷射装置设计为多功能的，可以远距离喷射或近距离覆盖。4. 动力及传动系统设计五十铃巨型水罐泡沫消防车的动力系统通常采用柴油发动机，具有功率大、油耗低的特点。传动系统包括变速箱、传动轴和驱动桥，以确保车辆在不同路况下的行驶性能。5. 安全及智能化设计这辆五十铃巨型水罐泡沫消防车在设计中注重安全和智能化。车辆配备了ABS防抱死制动系统、ESP车身稳定系统和倒车雷达等安全装置。智能化设计包括GPS定位系统、远程监控系统和自动灭火控制系统，可以实时监控车辆状态和火情，提高救援效率。 3. Foam system
